| System: | Window 7 | Software: | R&D Independently |
|---|---|---|---|
| PCB Length Width: | 250mm*any Length | Mounting Mode: | Group To Pick And Group To Mount |
| No.of Camera: | 5PCS（Digital Camera) | Mounting Speed: | 200000-250000CPH |
| No.of Feeders Station: | 68PCS | No.of Head: | 68PCS |
| Conveyor Transmission: | MAX Length: 1000mm | XYZ Axis Drive Way: | High-end Magnetic Linear Motor + Servo Motor |
| High Light: | 250mm Pick And Place Machine,250mm PCB Pick And Place Machine,250000 CPH PCB Pick And Place Machine |
||
RGB Component PCB Pick And Place Machine 250mm Window 7 System

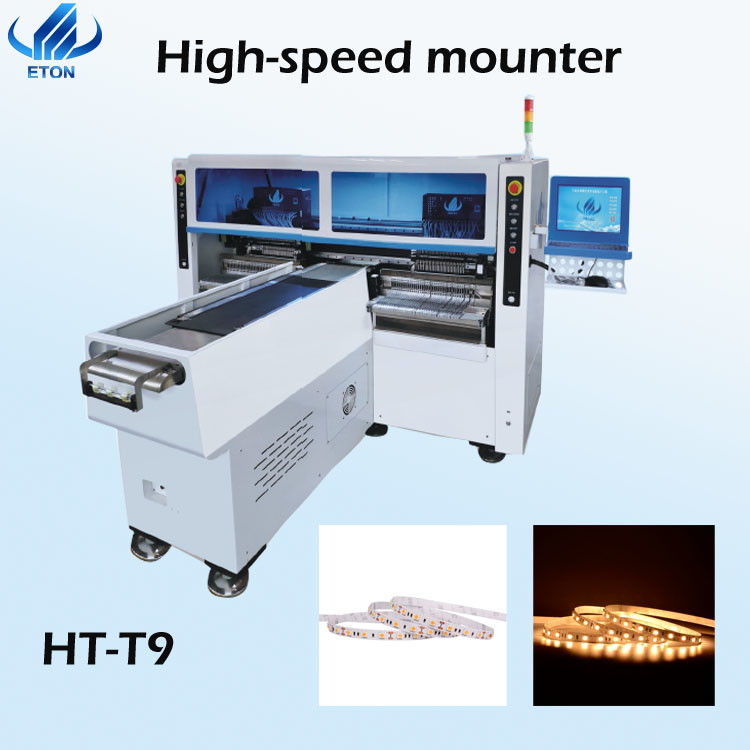

4 module 68 pcs placement head RGB component High speed pick and place machine
SMT placement machine structure:
Rack:The basics of the equipment, all controllers, precise positioning tissue and feeders are firmly fixed to it,
so it must achieve impact toughness and stiffness.
Transmission and belt organization of the PCB:its function is to transfer the PCB to the storage site, develop the patch,
and then transfer it to the next step device.
Driver system software: it is the index value for evaluating the accuracy of the placement machine,
it is important for the SMT placement machine.
PRODUCTION INTRODUCTION
68 pcs placement head, ensure the machine have high quality
Simple structure in linear type ,easy in installation and maintation.
RGB components can mount, high precious. can mount 0603.
Feeder control camera, nozzle control camera, Mark camera, make sure the mounting components correctly.
XYZ drive way by high-end magnetic linear motor and servo motor
Technical parameter
|
Model |
T9 |
|
Mounting mode |
Group to pick and group to mount |
|
Dimension(mm) |
3100*2300*1550 |
|
No.of camera |
5PCS |
|
PCB length width |
250mm*any length |
|
No.of head |
68PCS |
|
Mounting speed |
200000-250000CPH |
|
Operating enviroment |
23℃±3℃ |
SMT LINE SOLUTION
Usually, we need stencil printer(solder paste printer), loader, conveyor connect the machine, placement machine, conveyor connect the next machine, reflow oven, unloader. SPI, AOI machine.
According to your buget and area to make smt production line.
