Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Weight: | 1700kg |
|---|---|---|---|
| System: | Windows 7 | Mounting Speed: | 45000CPH |
| Power Consumption: | 4KW | Transmission Direction: | Both Direction(option) |
| XYZ Axis Drive Way: | High-end Magnetic Linear Motor And Servo Motor | Feeder Station: | 28 PCS Single Module |
| Head: | 12 PCS Single Module | Feeding Way: | Electric Feeder With Double Motor |
multifunctional LED light making 28 PCS feeders station 45000CPH pick and place machine
Technical parameter
|
Length: 2550mm Width: 1650mm Height: 1550mm Total weight: 1700kg |
|
| PCB Length width | Max: 1200*500mm Min: 100*100mm |
| PCB Thickness | 0.5-5mm |
| System | Windows 7 |
| Display | Touch screen monitor |
| Input device | Keyboard, mouse |
| Transmission speed | ≤1000mm/sec |
| Conveyor transmission | Max length: 1200mm |
| Mounting precision | ±0.04mm |
| Component space | 0.2mm |
| Component height | <15mm ( Automatic changing) |
| Transmission direction | Both direction (Option ) |
| No. Of feeders station | 28PCS Single module |
| No. Of head | 12PCS Single module |
| Operating environment | 23℃±3℃ |
| Power consumption | 4KW |
| X, Y, Z Axis drive way | High-end magnetic linear motor and serve motor |
| Feeding way | Electric feeder with double motor |
Mounting components and Applications
Mounting components: LED chip, capacitors, resistors, IC, crystal, lens, shaped component etc.
Applications: power driver, electric board, DOB bulb, linear bulb, lens, household appliance etc.

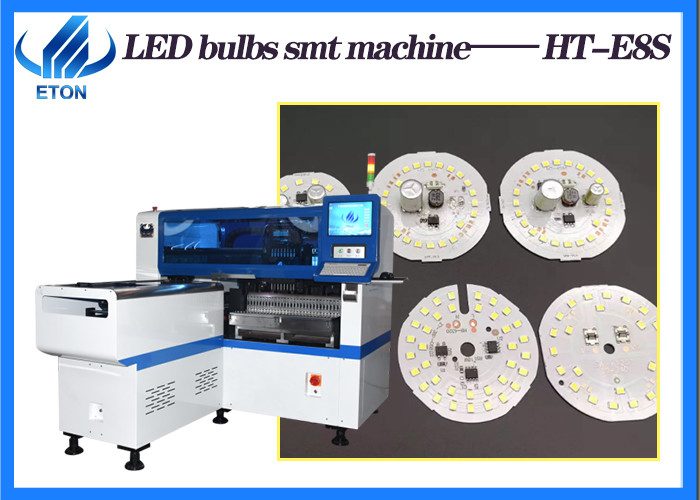

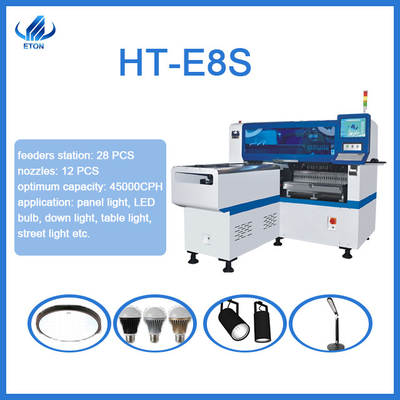

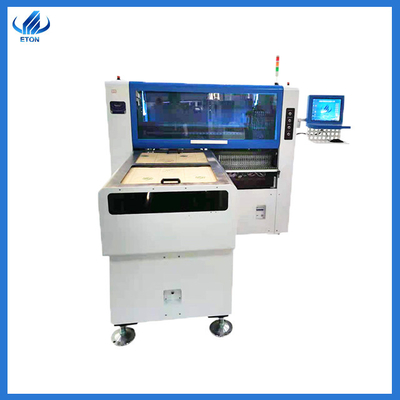

The Feature of HT-E8S Multifunctional mounter
Single module magnetic linear motor multifunctional pick and place machine
Fixed PCB board with adjustable pressure pneumatic mode
ETON Independent Research and development of machine software with 2 language( English and Chinese)
2 sets of imported camera and vision for the fight identification, Mark correction
The optimum capacity reach 45000CPH
Electronic feeder feeding system
Vision alignment fight identification, Mark correction
Non-stop materials re-loading function
The Completed SMT Production Line Of HT-E8S
We have the completed SMT production Line, including solder paste printer machine, conveyor, pick and place machine, reflow oven. Choose us, we will provide the production line which is suit for you. We also offer personal customization to satisfy your personalized production needs.
The exhibition
ETON actively participates in various exhibitions at home and abroad, and lets our products show up in front of our customers. Our exhibitions include domestic Guangzhou Light Asia Exhibition, Shanghai Munich Exhibition, Chongqing LED exhibition, international exhibitions in India Mumbai exhibition, Pakistan exhibition, Egypt exhibition, Turkey exhibition and so on.
The Service
Before sales
Our sales specialist will analyze and recommend the equipment and production line best for you and Provide exclusive and customized services
Under sales
Specialist sale tracks the equipment production and transport situation in time, ensure that the equipment arrives at customers in good condition, and provide professional technical guidance for equipment assembly, and part of areas provide door-to-door service for overseas engineers
After sales
One-year warranty period, sales specialist to answer questions online 24 hours; regularly visit customers to understand the working status of equipment.
