Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2700*2330*1500mm | Weight: | 1700kg |
|---|---|---|---|
| PCB Size: | Max:1200*330mm; Min:100*100mm | Mounting Height: | ≤5mm |
| Components Space: | 0.5mm | Mounting Speed: | 150000~180000 CPH |
| High Light: | Mark Correction SMT Mounting Machine,Vision Alignment SMT Mounting Machine,180000CPH SMT Assembly Machine |
||

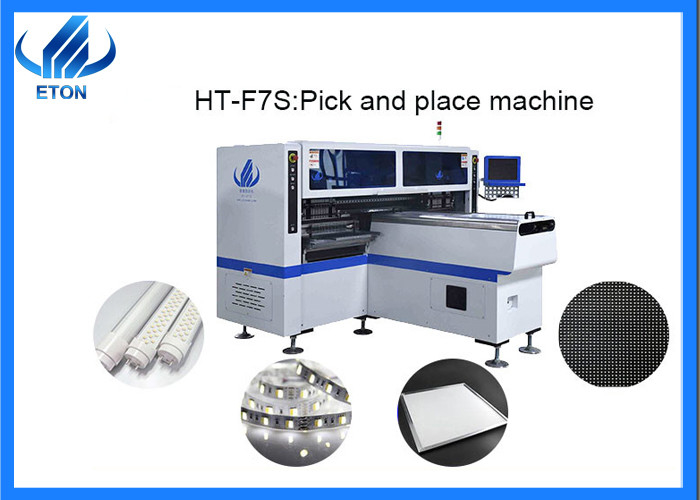

Professional highspeed capacity reach 180000CPH SMT assembly machine
Features:
1. Dual purpose professional high speed mounting machine, 2~4 type of capacity reach 150000-170000CPH.
2. Vision alignment, Mark correction.
3. Components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc.
4. Application: flexible strip, LED tube, panel light, display screen, etc.
| Model | HT-F7S |
| Dimension(L*W*H) | 2700*2300*1550mm |
| Weight | 1700kg |
| PCB length width | Max:1200*330mm;Min:100*100mm |
| PCB thickness | 0.5~5mm |
| Mounting precision | ±0.02mm |
| Mounting mode | Group to pick and group to mount |
| Mounting height | ≤5mm |
| Mounting speed | 150000~180000CPH |
| Components | LED 3014/3020/3528/5050,resistor,capacitor, |
| No. Of feeders station | 68PCS |
| No. Of head | 34 PCS |
| High capacity | Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1m LED hard light board and LED flexible strip. producing with 2~4 types of materials with high capacity ,available for board with any proportion of LED chip and resistors. |
| High precision | Two mounting modules ,17 nozzles for each mounting part, part A or B can be mounted separately or synchronously. |
| Exclusive | Exclusive patent technology :group to take and group to mount. |
Application:flexible strip, LED tube, panel light, display screen, etc.
1.ETON company: ETON enterprise was established in 2011. It is a high-tech enterprise dedicated to the R&D, production and sales of SMT high-speed placement machines. ETON has mad breakthrough progress in the field of SMT high- speed placement machine, which are widely used in light, led display, electronics field, power drive, home appliances etc.
2.Market: We occupied a vast foreign LED market, 80% larger and listed led factory are our client .We have been working with many big companies in India, Turkey, South Africa, Pakistan and so on. Products exported to over 20 countries and regions
3.ETON industry park: With an industrial park of 50,000 square meters, focusing on the R&D and production of the SMT industry. The industrial park is equipped with an advanced processing and manufacturing center, and the quality of the machine The control is very strict.
2.Free installation and training: we have established offices overseas. We can arrange engineers to go directly to the factory for free installation and training.
3.Free upgrade software: machine software is developed by our company, so we provide life-long free upgrade software for customer for customer who purchase the machine.
Our Advantages:
1.We are leading manufacturer of automatic high speed pick and place machine.
2.80% large and listed led factory are our client.We have over decades development history.
3.We have an industrial park covering an area of 50,000 square meters in jiangxi, which has various machine.
4.We have world record-breaking high speed pick and place machine, which speed reached 250000CPH.
5.We have local India engineer, As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learn to operate the machine, service is very convenient. We
have offices in Mumbai and New Delhi, very quick to support.
FAQ:
1.What is the difference of automatic line and semi automatic line ?
2.Do you have any customers in India? How many machines are there in India?
T/T is OK.30% Down payment in advance,70% payment before delivery.
