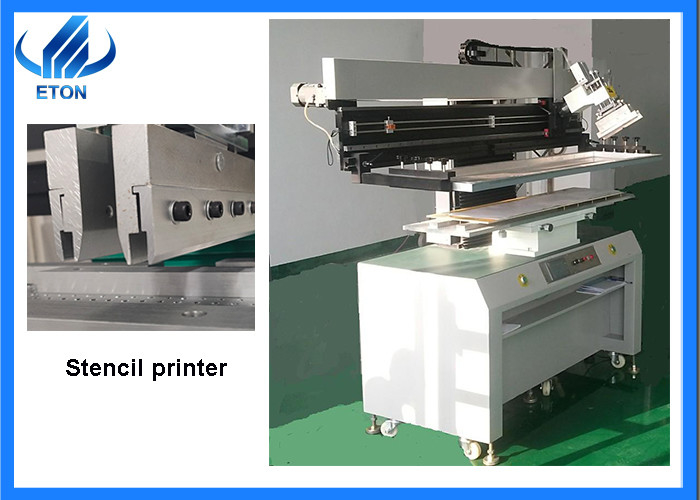

Semi Automatic Solder Paste Printer Machine 1500mm pCB length PLC controlled

7 days delivery semiautomatic solder paste printer machine

Machine function

Semiautomatic printer machine function is printer solder paste or the red glue on the PCB.

Machine structure

Semiautomatic printer is very easy machine, it is controlled by the PLC, and it is widely applied to many kind of led factory. For the led tube, led module lighting, which board is more than 1000mm/1200mm are usually using semiautomatic printer machine for save much cost.

Machine structure

1. High precision linear guide and ultra-quiet motor, squeegee printing is more stable

2. The combined printing platen is equipped with a fixed slot and a positioning PIN, which is quick to change and easy to locate, and is suitable for single-sided substrate and double-sided substrate operations.

3. The correction method adopts the movement of the net support arm to coordinate the X,Y,Z correction adjustment of the printed matter, and the correction is convenient and simple.

4.Using air cylinder and magnetic proximity switch, the worktable reciprocates, the accuracy of the printing surface can be reach ±0.01mm

Related SMT Machine

Pick and place machine/Reflow oven machine/Stencil printer machine/Solder paste mixer/Conveyor/Loader/PCB Carrier/Stacking loader/Hard strip splitter

RFQ

1.What is your machine warranty ?

A: For SMT Machine, standard warranty is one year, for our software, we guarantee whole life free upgrade.

2. Could I visit your client factory ?

A: ETON machine have been exported to many different countries, like India, Egypt, Turkey, Vietnam, etc. But for visit client factory, it is really need client promise. We can’t make a decision for that. For more news , please contact us.
