Name: | Automatic Stencil Printer | Model: | ET-5235 |
---|---|---|---|
Dimension: | 1240*1450*1650MM | PCB Size: | Max: 520*350mm, Min: 50*50mm |
PCB Thickness: | 0.6-6mm | Transport Speed: | Max 1200mm/s Programmable |
Print Head: | Two Independent Direct Connect Motor Driven Print Heads | Squeegee Angle: | 55°(standard) |
Printing Accuracy: | ±0.025MM | Transport Height: | 900±20mm |
High Light: | 220V SMT stencil printer machine,LED light SMT stencil printer machine |

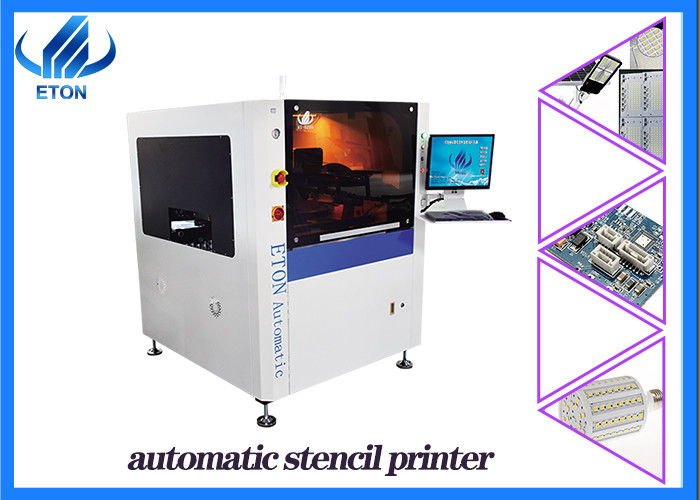

Full Automatic LED light 220V vision SMTvision stencil printer machine
The features
1. PCB transport and clamping system
Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh
The optimally designed module drive structure effectively improves the stability of the platform calibration, and realizes ultra-small transmission under fine-tuning, so that the machine can meet the printing requirements of higher precision. The structure is simple and reliable, the adjustment is convenient, and the height adjustment of the support PIN of PCB board with different thicknesses can be quickly realized.
2. Stencil positioning system
Arch bridge-shaped suspension hanging direct-connect scraper
The size of steel mesh is universal, with good and wide applicability
Segmented fixed steel mesh frame
3. Scraper system
Bilateral double-slider positioning type slide structure ensures the accuracy and smoothness of running before and after printing
According to the different pressure requirements of the front and rear squeegees and the stability of the lifting and lowering, to prevent the leakage of solder paste, the blade has a certain elastic clamping design, the pressure of the squeegee, the lifting speed, the printing speed, and the printing range are all software-customers with a good printing control platform
4. Operation interface
Make program files with teaching and navigation functions, with prompts for each step
One-key switch between Chinese and English, with operation log, fault record analysis and diagnosis and other functions
5. Image and optical system
X,Y axis adopts high-precision grinding ball crew, driven by servo motors at both side
The polarizer is added inside, and the MARK of different shapes is automatically and accurately grasped, and the upper, lower and coaxial three-
way uniform light sources
the technical parameter
model | ET-5235 | |
Dimension | 1240*1450*1650MM | |
weight | Approx: 700KG | |
Screen frames | Max size | 737mm |
Min size | 470mm | |
thickness | 25-40mm | |
PCB size | Max: 520*350mm, min: 50*50mm | |
PCB thickness | 0.6-6mm | |
Transport height | 900±20mm | |
Transport direction | Left-right, right-left, left-left,right-right | |
Transport speed | Max 1200mm/s programmable | |
Board location | Support system | Magnetic pin / up-down table adjusted by manual |
Clamping system | Unique top flattened, side clamping | |
Print head | Two independent direct connect motor driven print heads | |
Squeegee pressure | 0-10kg/cm2 | |
Squeegee angle | 55°(standard) | |
Squeegee type | Steel scraper(standard), PV scraper( option) | |
Stencil separation speed | 0.1-20mm/sec programmable | |
Cleaning system | Dry, wet, vacuum (programmable) | |
Printing accuracy | ±0.025MM | |
Cycle time | ≦9s(exclude printing& cleaning) | |
Product changeover | <5min |
SMT production line
The whole SMT production line machine mainly include stencil printer, pick and place machine, conveyor and reflow oven.
Stencil printer:Put the solder paste on the PCB board
Conveyor: transmission the PCB board to pick and place machine
Pick and place machine:mounting the components on the PCB board
reflow oven:heating the PCB board
Company introduction
Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. so far, ETON has more than 11 years experience.
the produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on. ETON also has obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights.
Exhibition
ETON actively participates in various exhibitions at home and abroad, and lets our products show up in front of our customers. Our exhibitions include domestic Guangzhou Light Asia Exhibition, Shanghai Munich Exhibition, Chongqing LED exhibition, international exhibitions in India Mumbai exhibition, Pakistan exhibition, Egypt exhibition, Turkey exhibition and so on.
Package and transport
Our products support three modes of sea, land and air. And use the most suitable wooden box packing to ensure that the equipment intact reaches the customer factory.
Service
Maintenance period : 1 YEAR
Visit customers regularly and gather information
Provide latest information about technology and equipment
Overseas engineers teach equipment operation
FAQ
1.Do you provide the complete production line machine?
Yes, of course. We provide the whole production line machine, including solder paste printer machine, conveyor, pick and place machine reflow oven.
2. What are the main appliance about the pick and place machine?
We have many different machine, and different machines apply to different appliance. The main products include bulb, tube, flexible strip, panel light, down light,street light,ceiling light, wall washer light etc.
3. How about the operation software language of the machine?
Our software are Independent R&D by ourselves with 2 language( English and Chinese).
4. What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
5. Who are your main clients?
Our production have exported to more than 20 countries and regions, including South Korea, India, Egypt, Turkey, Russia etc.
