Product Details:
Payment & Shipping Terms:
|
| Machine Type: | Multifunctional SMT Machine | PCB Size: | Max:1200*500mm |
|---|---|---|---|
| Dimension: | 2550*1650*1550mm | Weight: | 1700kg |
| Head: | 12pcs | Mounting Speed: | 45000 CPH |
| High Light: | Led Lights Assembly Machine 45000CPH,light automatic pick and place machine,45000CPH automatic pick and place machine |
||

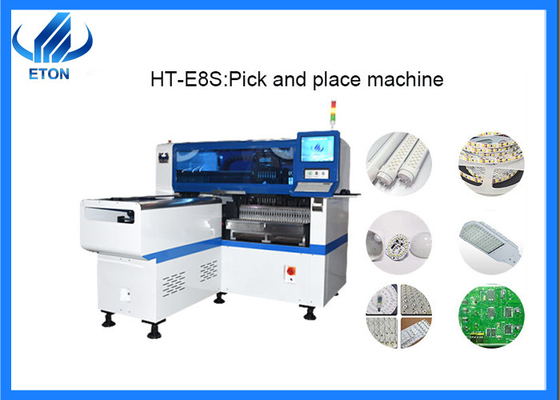

Single module led light 45000CPH 12 head automatic pick and place machine
Machine introduction:
1.HT-E8S-1200: Single module magnetic linear motor multifunctional pick and place machine.
2.Components:Min.size0402 Max.height 15mm
3.Mounting components:Led chip,capacitors,resistors,lens,IC,shape components,etc.
4.It equipped with 12 nozzles, which optimum mounting speed reached 45000CPH.
5.Application:LED tube,dob bulb, linear bulb, power drive, electric board, Lens, Panel light, Household appliance etc.
6.Exclusive patented technology:
Electronic feeder feeding system,Non-stop material re-loading function, Auto-optimization after coordinates generated, etc.
Machine technical parameter:
| Model | HT-E8S-1200 |
| Dimension(L*W*H) | 2550*1650*1550mm |
| Weight | 1700kg |
| PCB length width | Max:1200*500mm;Min:100*100mm |
| PCB thickness | 0.5~5mm |
| Mounting mode | Group picking and separately placing, separately picking and separately placing |
| No.of camera | 2 sets of imported camera |
| Vision for the flight identification, Mark correction | |
| Mounting height | <15mm(automatic changing) |
| Mounting speed | 45000cph |
| No. Of feeders station | 28 PCS single module |
| No. Of head | 12 PCS Single module |
| Mounting precision | ±0.04mm |
| Components space | 0.2mm |
| Conveyor transmission | Max length:1200mm |
| Power | 380AC 50 HZ |
| Power consumption | 4KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |
| Feeding way | Electric feeder with double motor |
| Components | LED chip, capacitors, resistors, IC, shaped components, etc. |
Machine main part:
HT-E8S-1200 SMT line solution:
Our clients:
ETON as the leading manufacturer of global photo electronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.
Exhibition and certificate:
ETON obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents,12 software copyrights.ETON is rated as "Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise" "Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
Our company participates in exhibitions at home and abroad every year (except during the epidemic period), such as:
Overseas: India Delhi Exhibition, India Mumbai Exhibition, Pakistan Exhibition, Egypt Exhibition, Tunisia Exhibition, Thailand Exhibition, etc.
Domestic: Guangzhou international lighting Exhibition; Shanghai Munich Exhibition; Chongqing LED Light Exhibition, etc.
Services:
(1).Free technical support: 7*24 hours online technical service.
(2).Warranty: 1 year. During the warranty period, any parts that need to be repaired and replaced are free.
(3).We have local India engineer, As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
(4) If necessary, Chinese engineers will come to your factory for free install and training.
(5) Besides India, We also have local engineers in Egypt, Turkey. Can provide you with timely services
(6).Free upgrade software: machine software is developed by our company, so we know how to make it more intelligent and we provide life-long free upgrade software for customer who purchase the machine.
(7).we can provide whole line solution if you want. We are very professional on SMT field.
FAQ:
1.Can I use CIF price?
CIF price need add the freight, insurance fee on the basis of EXW price, and the india delivery forwarder will charge ours more than yours. so actually to do EXW will more simple and save cost for you.
2.Does the price include spare parts(nozzle and feeder)?
Different client has different requirements on spare parts, it is not fair to clients to add In equivalent price for spare parts. So we don’t add the spare parts cost on price. And price is only for machine.
3.Why their machine price is so much lower than yours?
You said that there are some peeling machines cheaper than us on the market, which does exist, but their selling point is price, and our selling point is quality. We can guarantee you the quality of ETON pick and place machine, and the value is far more than our price.
4.What can you buy from us?
Pick and place machine, Automatic stencil printer,SMT machine,Reflow oven,LED light production line.
