Product Details:
Payment & Shipping Terms:
|
| Machine Type: | Highspeed SMT Machine | Dimension(L*W*H): | 3100*2300*1550mm |
|---|---|---|---|
| Weight: | 1700kg | PCB Size: | 250mm*any Length |
| Head: | 68 Pcs | Mounting Speed: | 200000~250000 CPH |
| Feeding Way: | Electric Feeder With Double Motor | ||
| High Light: | LED Flexible Strip Mounter Dual Arm,LED Flexible Strip Mounter 68 Heads,SMT Chip Mounter 250000 CPH |
||

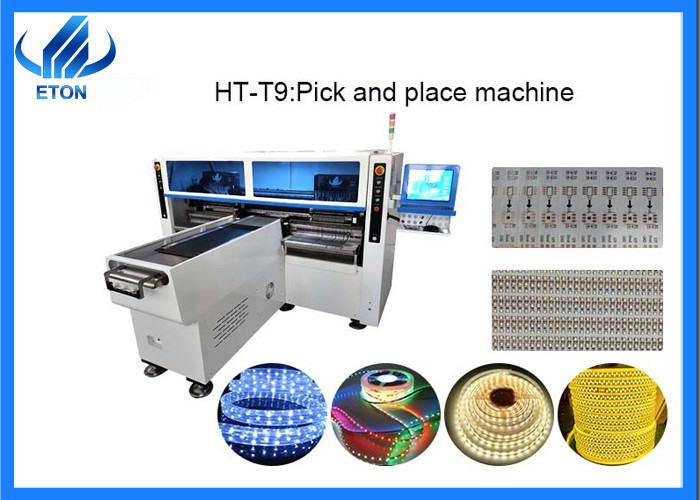

Dual arm Led Flexible Strip Mounter 68 Heads 250000CPH SMT Chip Mounter
Machine Features:
Machine technical parameter:
| Model | HT-T9 |
| Dimension(L*W*H) | 3100*2300*1550mm |
| Weight | 1700kg |
| PCB length width | 250mm*any length |
| PCB thickness | 0.5~1.5mm |
| Mounting mode | Group to picking and group to mount |
| Mounting height | ≤5mm |
| No.of camera | 5 PCS |
| Vision alignment, Mark correction | |
| Components | LED 3014/3020/3528/5050/and resistor,capacitor, bridge rectifiers etc. |
| Components space | 0.5mm |
| Mounting mode | Group to picking and group to mount |
| Power consumption | 6KW |
| Mounting speed | 200000~250000CPH |
| No. Of feeders station | 68 PCS |
| No. Of head | 68 PCS |
| X,Y Axis drive way | High-end magnetic linear motor+Servo motor |
| Feeding way | Electric feeder with double motor |
HT-T9 layout:
HT-T9 Semi-automatic production line
Application:
HT-T9 SMT pick and place machine is for 5 meters, 50 meters and any length of wire board,
disposable mount. Apply to LED soft lamp manufacturer.
HT-T9 achieving any length PCB uninterrupted pasted on. This mode is 5M,50M etc. And it’s
identified the correct position by camera. So it’s high precision and good stability.
Customer:
Services:
1.Free technical support: 7*24 hours online technical service.
2.Free installation and training: we have established offices overseas. We can arrange engineers to go directly to the factory for free installation and training.
3.Free upgrade software: machine software is developed by our company, so we provide life-long free upgrade software for customer for customer who purchase the machine.
4. We can provide SMT production line solution with you.
FAQ:
(1). How about the Training?
We provide the online remote training service, and we will offer you the operating video and manual for user’s repeatedly learning.
(2).How about the After-sale Service?
We provide one year warranty, during the warranty period, if any wrong, we will send the accessories free of charge.
(3).why choose us?
ETON is the famous brand for pick and place machine. We have decades experience in this field. 80% larger and listed led factory are our client and occupied a vast foreign LED market.
(4).Which language is the software? Can you provide software updates?
English and Chinese is OK. Free to upgrade software for lifetime.
(5). Can we customize the machine?
Of course. All of our machine can be customized.
