Product Details:
Payment & Shipping Terms:
|
| Feeders Station: | 42 PCS | Heads: | 10 PCS |
|---|---|---|---|
| Feeding Way: | Electric Feeder With Double Motor | Transmission Direction: | Single Direction |
| X,Y,Z Axis Drive Way: | High-speed Magnetic Linear Motor And Servo Motor | No. Of Camera: | 2 Sets |
| Power Consumption: | 4 KW | PCB Length Width: | Max: 450*350 Mm Min: 80*80 Mm |
| PCB Thickness: | 0.1-6mm(if <0.6mm Need Jig) | ||
| High Light: | LED Lights SMT Pick And Place Machine,SMT Automatic pick and place machine,double motors pick and place machine |
||
42 feeders station 12 heads automatic LED light SMT pick and place machine
Machine main parameter
| PCB length width | Max: 450*350mm Min: 80*80mm |
| PCB thickness | 0.1-6mm(if <0.6mm need jig) |
| No. Of camera | 2 sets |
| Mounting speed | 40000CPH |
| Power consumption | 4KW |
| Transmission direction | Single direction |
| X,Y,Z Axis drive way | High-speed magnetic linear motor and servo motor |
| Feeding way | Electric feeder with double motor |
Machine main features

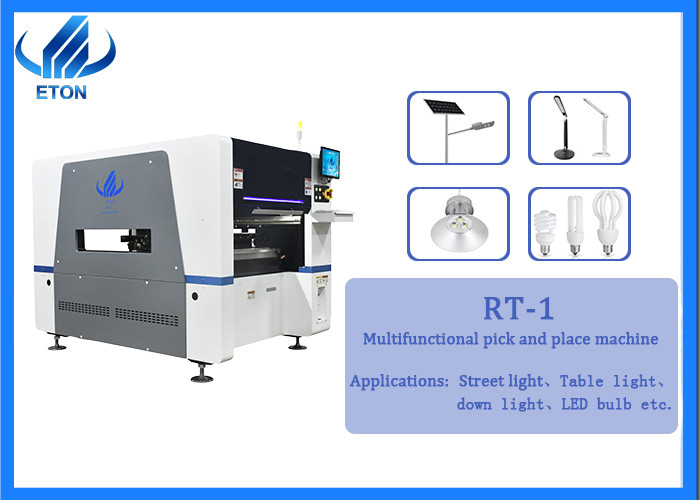

1. RT-1 is a multifunctional pick and place machine with 10 nozzles and 32 feeders station, the optimum capacity will reach 40000 CPH.
2. RT-1 can mounted all kinds of components: IC, capacitors, resistors, LED chips, shaped components and so on and apply to various lighting, including LED bulbs, panel light, street light, down light etc.
3. RT-1 has the exclusive patented technology: electronic feeder feeding system, vision alignment flight identification, mark correction and auto-optimization after coordinates generated.
Packages
1.The first step: The machine is packaged with foam cotton and foam film to protect the exterior of the machine
2.The second step: Vacuum packing. Put the desiccant in a vacuum bag to prevent moisture; use straps to secure the machine;
3.The third step: Use professional wooden box packaging to prevent collision damage during transportation
The Service
1. Before sales
Our sales specialist will analyze and recommend the equipment and production line best for you and Provide exclusive and customized services.
2. Under sales
Specialist sale tracks the equipment production and transport situation in time, ensure that the equipment arrives at customers in good condition, and provide professional technical guidance for equipment assembly, and part of areas provide door-to-door service for overseas engineers.
3. after sales
One-year warranty period, sales specialist to answer questions online 24 hours; regularly visit customers to understand the working status of equipment.
RFQ
1. Do you provide the whole SMT production line machine?
Yes, of course. We provide the whole production line machine, including solder paste printer machine, conveyor, pick and place machine and reflow oven.
2. what should I do If I don't know how to operate the machine ?
Don't worry. We will provide the detailed operation instructions, and part of area will provide oversea engineer teaches the operation door-to-door.We also have local engineers in Egypt, Turkey, India.
3. How about your company?
We have more than 11 years experience and have obtained a number of intellectual property technologies.Our products are exported to more than 20 countries and regions.
4. What’s the terms of payment?
T/T is OK. You can choose EXW or FOB Shenzhen.
5. How long is the period for delivery?
We will delivery within thirty days of payment.
