Model Number: | T9-2S | Weight (KG): | 3100 |
---|---|---|---|
PCB Size: | 250MM* Any Length | Power Supply: | 380AC 50hz |
Feeder: | Electronic Feeder | Mounting Mode: | Group Taking And Group Placing |
Precision: | 0.02MM | X,Y,Z Drives: | High-end Magnetic Linear Motor |
Machines window
1: Machines Introduction

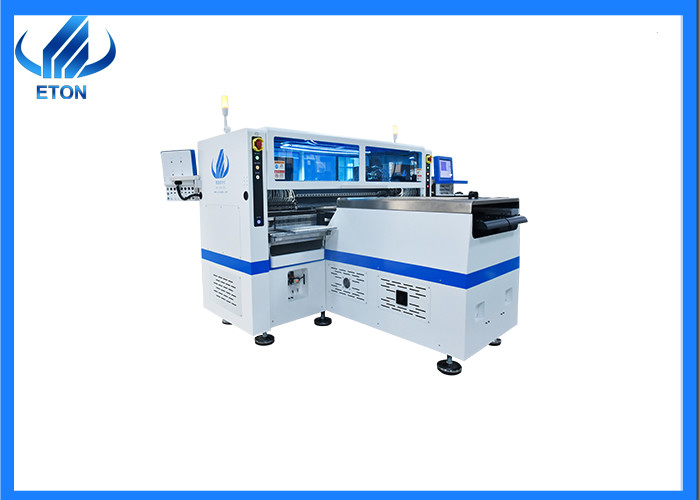

T9-2S SMT pick and place machine is for 5 meters, 50 meters and any length of wire board, disposable mount.
Apply to LED soft lamp manufacturer.
T9-2S achieving any length PCB uninterrupted pasted on. This mode is 5M,50M etc. And it’s identified the correct
position by camera. So it’s high precision and good stability.
2: Features
High Accuracy Magnetic Linear Motor + Panasonic Servo Motor
136 heads 136 feeder stations Four Arm four module , 34 nozzles for each mounting part.
Part A or part B can be mounted separately or synchronously.
Vision alignment, Mark correction
Calibration automatically, high precision, available for RGB
Capacity can Reach 500 000 CPH
Step 1 | Loader Machine | Sending the FPCB roll to printer machine |
Step 2 | Semi-automatic Stencil Printer | Printing the solder paste on the flexible PCB |
Step 3 | Buffer Stage | Buffer and transport the flexible PCB to pick and place machine |
Step 4 | Pick and Place Machine | Mounting LED chips and components on flexible PCB |
Step 5 | Transportation Belt Line | Transport the flexible PCB to reflow oven |
Step 6 | Reflow Oven |
Heating the solder paste with FPCB to welding the components on FPCB |
Step 7 | Unloader Machine |
Rewinding the finished Flexible strip |
