Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Model: | HT-F7S |
|---|---|---|---|
| Appearance: | White And Blue | PCB Size: | Max:1200*330mm Min:100*100mm |
| Camera: | 5 Sets Import Camera | Feeders Station: | 68PCS |
| Heads: | 34 PCS |
led tube and panel assembly machine 380 AC with 18W CPH high speed mounter
The technical parameter of led tube and panel assembly machine
| No. Of feeders station | 68 PCS |
| No. Of head | 34PCS |
| No. Of camera | 5 sets of digital camera |
| .PCB length width | Max:1200*330mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and group placing |
| Feeding way | Electric feeder with double motor |
| software | R&D independently |
| Mounting height | ≤5mm |
| Power consumption | 6kw |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |
| Electrical control | Independent research and development by ETON |
| Dimension | 2700*2300*1500mm |
| Weight | 1700kg |
| Power | 380AC 50HZ |
| Components | Led 3014/3528/3020/5050 and resistor, capacitor, bridge recitifiers etc. |

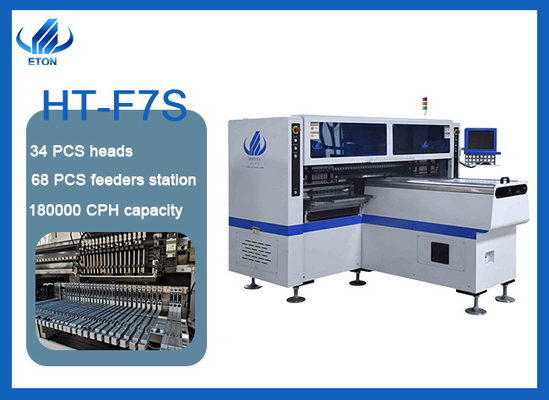

The advantages of HT-F7S led tube and panel assembly machine
1. HT-F7S can produce two to four different types of materials at the same time,
2. HT-F7S has Total 34 heads with double mounting heads, Each mounting head has 17 nozzles,
3. For Every mounting head, it can be mounted separately or synchronously.

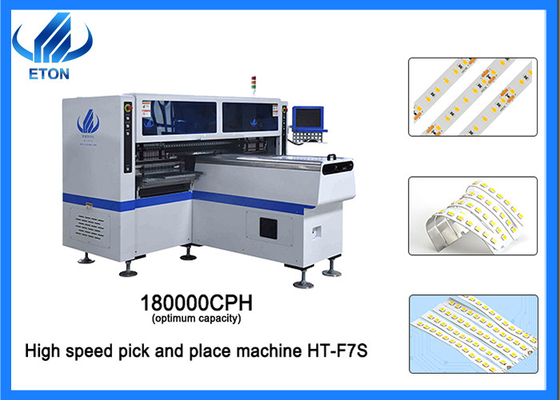

4. For led tube light SMT machine HT-F7S, the optimum mounting speed can reach 180000 CPH.
5. HT-F7S is professional and high speed pick and place machine, because it mainly adopt the group to pick and group to mount mounting mode.
Production line of led tube and panel assembly machine
The Semi-automatic SMT production line of 1.2M tube light making machine includes semi automatic stencil printer, conveyor, reflow oven.
Exhibitions
ETON has been actively participating in various exhibitions at home and abroad since its establishment.
Package and delivery
Step 1: pack the machine with foam cotton and stretch film to protect the outside of the machine
Step 2: Vacuum packing. Put the desiccant in a vacuum bag to prevent moisture; use straps to secure the machine;
Step 3: professional wooden box packaging.
Service
One year warranty, during warranty, any parts that need to be repaired and replaced will be free
The software is Reach and developed by ETON, support whole lifetime free upgrade updates
We will visit local clients and support our service and collect feedback on customer suggestions in time
We give professional technology suggestions to our clients. And share the updated news with our clients
We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers, who will come to your factory for free install and training you how to operate the machine.
