| Dimension(L*W*H): | 2700*2300*1550mm | Weight: | 1700kg |
|---|---|---|---|
| PCB Length Width: | Max:1200*330mm;Min:100*100mm | Mounting Speed: | 200000~250000 CPH |
| No. Of Feeders Station: | 68 PCS | No. Of Head: | 68 PCS |

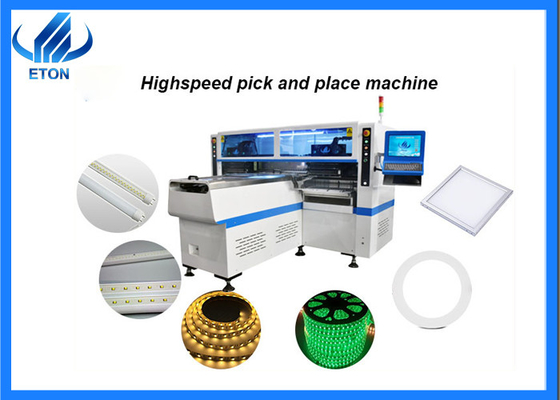

High Quality Smt Production Line 250000cph SMT Chip Machine
Machine Features:
1.Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with producing with 4 types materials at the same time with high capacity, available for board with any proportion of led chip and resistor.
2.Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
3.Exclusive patent technology: Group to take and group to mount.
4. 5 cameras, 2 feeder debugging cameras, 2 nozzle debugging cameras, one Mark camera, high placement accuracy.
5.The mounting speed reached 200000~25000CPH.
6.The software, circuit and hardware structure of the whole machine are all independently developed by our company, with independent intellectual property rights.
Machine main parameter:
| Model | HT-F9(Dual arm magnetic linear LED high speed pick and place machine |
| Dimension(L*W*H) | 2700*2300*1550mm |
| Weight | 1700kg |
| PCB length width | Max:1200*330mm;Min:100*100mm |
| PCB thickness | 0.5~5mm |
| Mounting precision | ±0.02mm |
| Mounting mode | Group to take and group to mount |
| Components | LED3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers |
| Mounting height | ≤5mm |
| Mounting speed | 200000~250000 CPH |
| NO.of camera | 5PCS(Digital camera) |
| No. Of feeders station | 68 PCS |
| No. Of head | 68 PCS |
| X,Y Axis drive way | High-end magnetic linear motor+servo motor |
| Feeding way | Electric feeder with double motor |
Application:
This machine suitable for mounting 0.5m,1m, 1.2m hard light board or any length of flexible strip. It can produce
Linear products such as lamp tube, flexible strip ,panel light, display screen and so on.
Company profile:
Shenzhen ETON Automation Equipment Co., Ltd. has been committed to the development and manufacture of placement machine equipment, insisting on the concept of "serving customers" and establishing the market trend. After more than 10 years of accumulation and precipitation, ETON Automation has broken through various technical difficulties in the patch industry, mastered core innovative technologies, and obtained a series of related invention patents.
ETON mission: professionalism, excellent technology, sharing results.
ETON goal: to create a national brand and build an international Chinese enterprise.
EETON purpose: to create value for customers and create benefits for the society.
Exhibition:
In order to allow more companies and customers to be recognized by us and expand the brand effect of the company's machines. Except during the epidemic, we will participate in exhibitions every year, including domestic exhibitions and foreign exhibition.
Services:
1.Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free
2.Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates
3.Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time
4.Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
5.On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ:
1.Does your machine have quality certificate?
A:Our machine have pass CE certificate, SIRA, ISO and have patent
2.Do you have local office in India ?
A: Yes, we have office in India New Delhi and India engineer.
3.What is your delivery date?
A: The delivery date is about 20 days upon the full payment.
4.What is the terms of payment? What about the trade term?
A:T/T is OK. You can choose FOB Shenzhen.
5.This is the first time I use this kind of machine, is it easy to operate?
A:Yes. There are English manual and guide video that show you how to use machine.
If there is any doubt in the process of operating the machine, please feel free contact us.
We also provide overseas on-site service.
