Product Details:
Payment & Shipping Terms:
|
| Name: | SMT Conveyor | Brand: | ETON |
|---|---|---|---|
| Transport Height: | 900±20 Mm | PCB Size: | 500*350 Mm |
| Transmission Direction: | Single (left → Right ) |

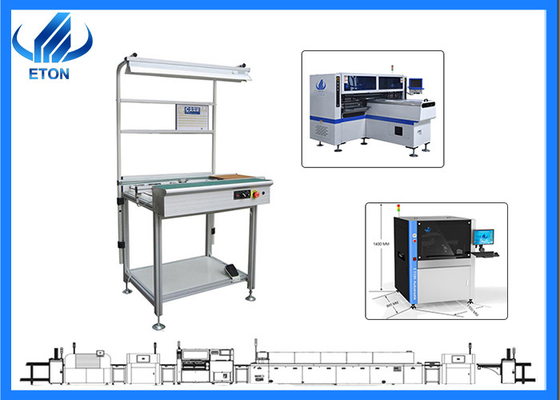

Led light SMT machine automatic conveyor for bulbs pick and place machine
Product features
The movable working table, Visible Board document and lighting rack are arranged on the basis of the conveyor;
The lighting brightness, operation height and other user-friendly design, the operation is more efficient, convenient and practical;
Green flat imported anti-static transmission belt, durable, easy to replace;
Sheet metal weighted structure, overall stable, not easy to shift;
PLC control system, through SMEMA communication.
Technical parameter
| Description | This equipment is used to transfer the circuit board in the production line |
| Transport height | 900±20mm |
| Power consumption | Single-phase AC110 ~ 220V (optional), up to 50 volt amperes |
| Transport speed | 0.5 ~ 20 meters per minute (or customer specified) |
| Conveyor belt type | 4mm wide flat belt |
|
Steel frame structure, rail length |
L=500 |
| Width adjustment range | 50～350 mm |
| PCB size | 500*350 mm |
| Transmission | 5MM flat belt conveyor |
| Speed | Adjustable from 0.5 to 9 m/min |
| Motor | One set of 25 W stepper motor |
| Control | Industrial control panel |
| Transmission Direction | Single (left → right ) |
| One section of control, two Sensors | |
SMT production line
The conveyor is mainly used to connect all kinds of equipment, play the role of transmission, convenient manual plug-in, inspection and so on. It is needed in either full automatic production line or semi automatic production line.
SMT machine and related equipment
SMT pick and place machine is the main and important machine in SMT production line; SMT peripheral equipment includes stencil printer, reflow oven, loader, unloader, stacking loader,AOI, SPI etc.
Company profile

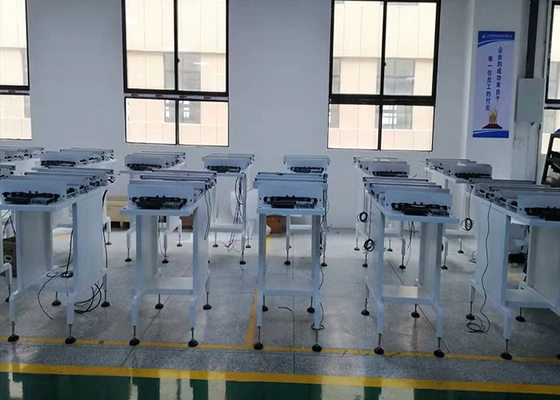

1. ETON has own 52000㎡ industrial park, 7 bulidings, over 500 employee; Independent design, R&D, production, assembly; production and manufacturing capacity is very strong, Guaranteed quality, Got 133 patent and certificate.
2. ETON has Over 10 years of specialized in the production of LED lights to provide SMT services, Experienced and mature.
3. ETON has India local engineers visit your factory for free installation and training.
4. F7S is more intelligent and faster, support software free upgrade for machine whole life, the cost can be recovered quickly.
5. ETON is a famous manufacturer of SMT pick and place machine, many big brand all using our machine, prove that we are very advantageous in the LED industry and electronics industry. Like RK, KONKA, POLYCRB, SURYA, UNISTAR, TCL, etc
