Product Details:
Payment & Shipping Terms:
|
| Model: | YT202 | Warranty: | 1 Year,12 Months |
|---|---|---|---|
| Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
| Power Supply: | 380V 50HZ | Condition: | 100% Original,Brand-new |
| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine | Weight: | 1700KG |
| Mounting Speed: | 90000 CPH | Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED |
| Dimension: | 2317*1376*1762mm | ||
| High Light: | Double Module SMT Pick Place Machine,10 heads LED Mounter Machine,LED Mounter Machine Double Module |
||

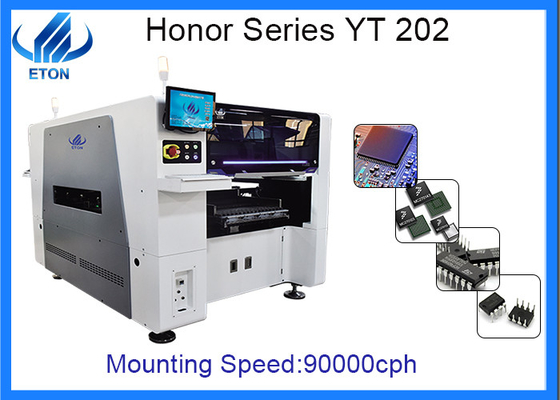

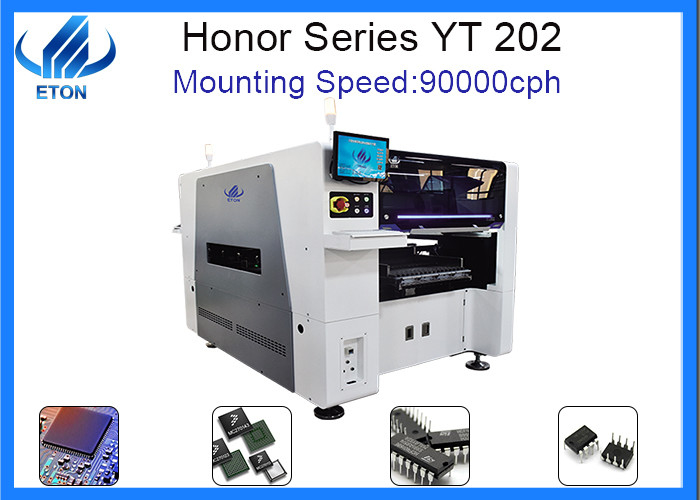

Pick and place machine 10 heads LED Electronics Production Machinery
Product Details
Model Number:YT202
Dimension:2317*1376*1762mm
Heads:20pcs
Weight:1700kg
Mounting Speed:90000CPH
Power:380AC 50HZ
Feeder:32pcs double module
PCB size:
MAX:500*450mm(single pcb)/500*300mm(double pcb)
MIN:50*50mm
PCB thickness:0.5-4.5mm
Core Components:Motor
Brand:ETON
Visual camera:4set of imported camera
Place of Origin:Guangdong, China
Warranty :1 Year
Common electronic component
Resistance: shunt limiting, voltage dividing, converting electrical energy into internal energy, blocking current capacitance: the amount of stored electrical energy, plays an important role in tuning, by-pass, coupling, filtering, etc.
Induct-or: energy storage elements, sensors in the circuit mainly play a filter, oscillation, delay, notch, and other functions, as well as screening signals, filter noise, current stability and suppression of electromagnetic interference. AC-AC isolated DC
diode: used in rectifier, isolation, voltage regulator, polarity protection, coding control, FM modulation and static noise circuits. Unidirectional conducting
Triode: amplification signal, voltage regulator, switch. Flow control characteristics, amplifier function characteristics transformer:voltage conversion,current conversion, impedance conversion, isolation, voltage stabilization
integrated circuits: micro-electronic devices or components, circuit function integration. Small size, light weight, less lead wire and welding point, long life, high reliability
crystal oscillator: Quartz Crystal is a clock piezoelectric crystal. When a piezoelectric crystal is squeezed or stretched in a particular direction, different charges are generated at its two ends.
Machine parts
Axis Configuration
X-axis: the mobile header component is parallel to the PCB transfer direction.
Y-axis: the moving head component is perpendicular to the PCB transfer direction.
Z-axis: controls the height of the working head assembly.
R axis: control the rotation of the nozzle axis of the working head assembly.
FAQ
Q:Do you have wave soldering machine?
A:Sorry, at present, we are the manufacturer of pick and place machine, but also provide the related SMT machine, such as reflow oven, stencil printer, conveyor, loader machine and so on.
Q:Can i visit the production site of your machines in India?
A:i have to ask my client. After all,this is our customer’s factory.we cant not make decisions for my clients. I think that you wouldn’t want your competitors visit your manufacturing site.please understand.
