Product Details:
Payment & Shipping Terms:
|
| Model: | ET-C1400 | Steel Frame Structure, Rail Length: | L=1400 |
|---|---|---|---|
| Max PCB Size: | 1400*350 Mm | Width Adjustment Range: | 50～300 Mm |
| Transmission Height: | 920±20 Mm |

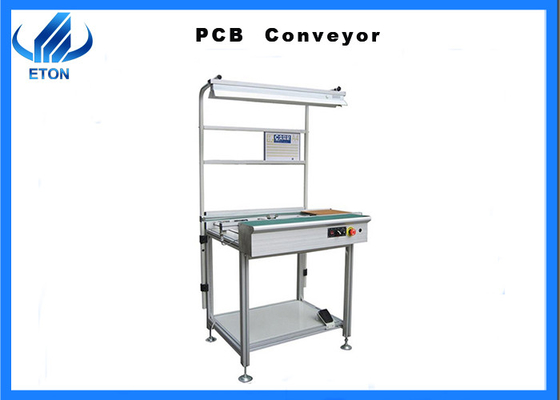

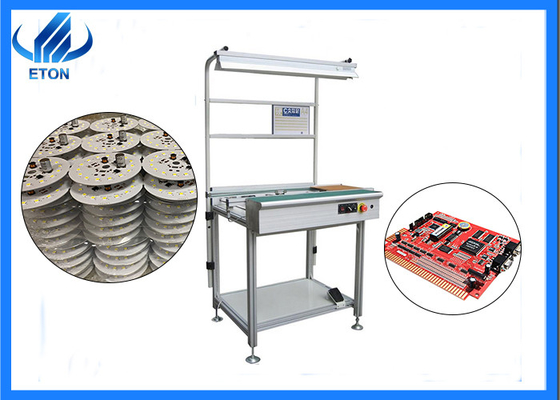

PCB conveyor in smt production line with LED light transmission buffer machine
SMT production line middle docking station
The docking station in the SMT production line is placed behind the printing machine and in front of the mounting machine. The docking station is used to transmit PCB boards and has the function of buffering
Selection of docking station
Generally, the selection of the docking station is based on the size of the customer's PCB. When selecting the docking station, the selection range of the docking station is usually larger than your actual PCB size, which is mainly for better transmission of PCB
Conveyor size
Generally speaking, the size of the docking station is 50060012001400. Of course, we support customization
Technical parameter
| Model | ET-C1400 |
| Steel frame structure, rail length | L=1400 |
| Max PCB size | 1400*350 mm |
| Width adjustment range | 50～300 mm |
| Transmission height | 920±20 mm |
| Transmission | 5MM flat belt conveyor |
| Speed | Adjustable from 0.5 to 9 m/min |
| Motor | One set of 40 W stepper motor |
| Control | Industrial control panel |
| Transmission Direction | Single(left → right or right → left) |
| One section of control, 4 Sensors | |
| Set of electric control box | |
Other machines
We not only provide mounters, but also provide loading machines, connecting tables, printing machines, dispensing machines, transplanters, solder paste mixers, temporary storage machines, AOI, SPI, wave soldering, reflow soldering, unloading machines, etc
Market
domestic market
We have 80% of our partners in China, and we help them build their own factories
Of course, we also have many customers overseas, such as SURYA, Calcom,Polycab,RK,RangDong,Konka,etc.
Service
We can provide professional SMT whole line scheme
1. We support free on-site installation services (no matter where you are)
2. During the warranty period, all parts are damaged and can be replaced free of charge
3. Support 24/7 free online video teaching service
4. We support lifelong free software updates
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
