| Name: | Send Board Machine | Dimension: | L1400*W860*H1200±30mm |
|---|---|---|---|
| Software: | R&D Independently | Warranty: | 1 Year |
| Weight: | 160kg | Condition: | New |
| Power Supply: | AC220V 50Hz | Maximum Size Of PCB: | L450*W330mm |
| No. Of Full Load Storage Board: | 50 PCS | Payment: | T/T,LC |
led lights assembly machine 330mm 250mm Multi Magazine PCB Loader SMT PCB handling equipment PCB unloader machine pcb conveyor PCB board stacker
pcb Loader machine introduction
The board loading machine is also called the board feeding machine and the feeding machine. It is a kind of production equipment that needs to be used in the SMT production and processing of electronic products. Its main function is to place the unmounted PCB boards in the SMT board loading machine. The board arrives at the board suction machine, and then the board suction machine automatically places the PCB on the track of the solder paste printing machine and uploads it to the solder paste printing machine for solder paste operation.
The SMT automatic loading machine is used at the source of the SMT production line. According to the requirements of the rear equipment, the PCB plates stored in the circulating box will be transferred to the production line one by one. When all the PCB plates in the circulating box are transferred, the empty circulating box will be automatically downloaded and replaced with the following fully loaded circulating box.
Technical parameter of PCB loader machine
| Item | ET-L330 send board machine |
| Dimension | L1400*W860*H1200±30mm |
| Frame | Special aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Transmission motor | Taiwan 15W fixed speed motor |
| Structure | Pneumatic clamp structure |
| Magazine Specifications | L460*W400*565mm |
| Maximum size of PCB | L450*W330 |
| Direction | Right to left / left to right |
| Lift platform pitch selection | 10,20,30,40 |
| Transmission height | H=920±30 |
| Controller | Mitsubishi PLC programmable controller |
| Function | Automatically send board |
| Operation control panel | Display control true color touch screen |
| Pneumatic Components | Push plate cylinder position, adjusted by screw |
| power supply | 220V 50HZ |
| No. of Full load storage board | 50 PCS |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |

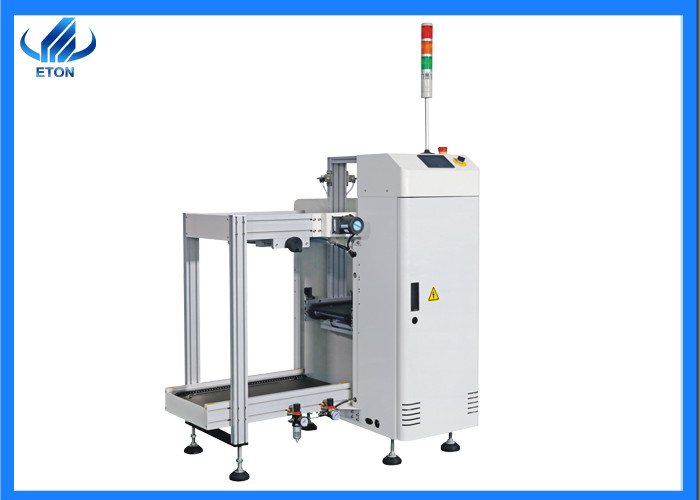

Pictures of SMT machine PCB loader machine
