Product Details:
Payment & Shipping Terms:
|
| Name: | SMT Conveyor Machine | Module: | ET-DC600 |
|---|---|---|---|
| Condition: | New | PCB Size: | 600*300mm |
| Speed: | Adjustable From 0.5 To 9 M/min | Transmission: | 5MM Flat Belt Conveyor |
| High Light: | flat belt PCB conveyor machine,Assembly Machine PCB Conveyor,9 M/Min PCB Conveyor |
||

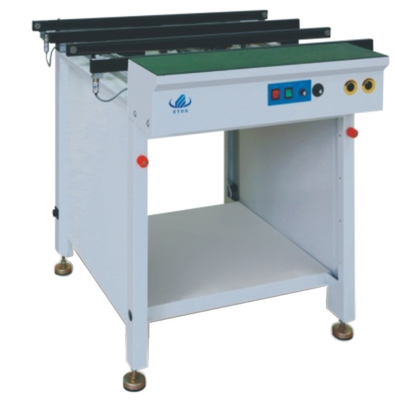

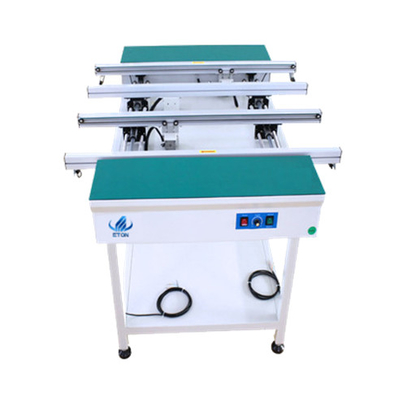

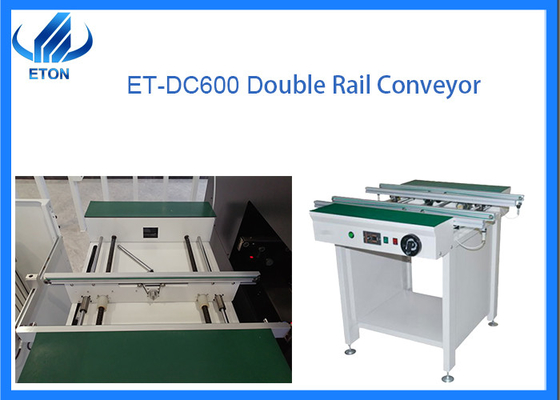

ET-600 PCB conveyor machine connect for the Assembly machine Adjustable from 0.5 to 9 m/min
Specifications
| Model | ET-DC600 |
| Steel frame structure, rail length | L=600 |

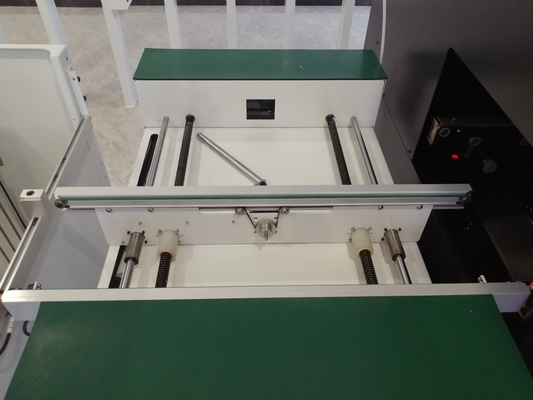

| Width adjustment range | 50～300 mm |
| Transmission height | 920±20 |
| PCB size | 600*300 mm |
| Transmission | 5MM flat belt conveyor |
| Speed | Adjustable from 0.5 to 9 m/min |
| Motor | Two set of 25 W stepper motor |
| Control | Industrial control panel |
| Transmission Direction | Single(left→ right or right → left) |
| One section of control, Four Sensors | |
SMT Production Line
Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.
Single conveyor: Inspect the quality of assembly and welding to cushion the production line.
Pick and place machine: Mount the electronic component at the specified position on the PCB.
Reflow oven: Melt the solder paste and fix it to the mounting element.
Functions in Production Line
SMT PCB conveyor can link the pcb magazine loader unloader for smt assembly, this PCB conveyor are mainly used for equipment linking, visual inspection, manual assembly, and PCB buffering functions. Their advantage is the short length, which allows them to be placed anywhere when you have space limitations.
Packaging
All machines are packed with vacuum and wooden packing
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
Service
1. Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
FAQ
1.What can you buy from us?
Multi-functional pick and place machine,High-speed pick and place machine,Glue dispenser machine,Multifunctional Pick And Place Machine,High Speed Pick And Place Machine etc.
2.Can I visit the production site of your machines in India?
I have to ask my clients. After all, this is our customer’s factory, we can’t make decisions for my clients. I think that you wouldn’t want your competitors to visit your manufacturing site, please understand.
3.Can you support whole SMT line?
Yes, we can provide whole line solution if you want. We are very professional on SMT field
4. Q: Are you a trade company or a manufacturer?
A:We are an experienced manufacturer of SMT. Our company has been established for ten years, the company has more than 300 employees, the company is a large-scale, is the top domestic enterprises
