Product Details:
Payment & Shipping Terms:
|
| Model: | YT101s | Warranty: | 1 Year,12 Months |
|---|---|---|---|
| Applicable Components: | SOP | Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle |
| Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine | Power Supply: | 380V 50HZ |
| Condition: | New,100% Original,Brand-new | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine |
| Weight: | 1700KG | Mounting Speed: | 40000 CPH |
| Type: | Automatic | Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED |
| Dimension: | 2154*1376*1762mm | ||
| High Light: | Driver Board SMT chip making machine,LED Lights SMT chip making machine,380V SMT making machine |
||

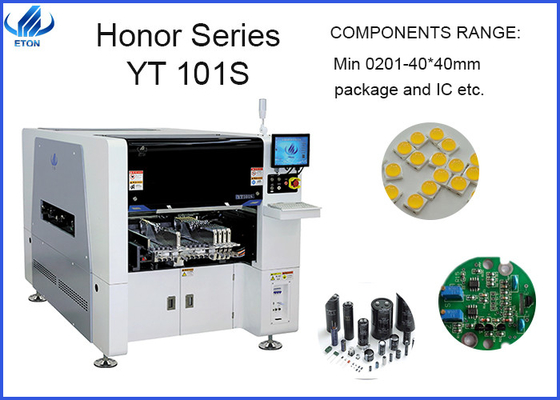

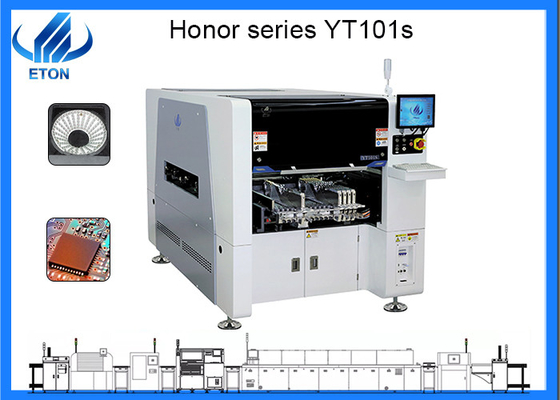

SMT chip making machine with all kinds of LED lights and PCB driver board
Product description
It is suitable for all LED lights, and drive PCB boards for general household appliances. It can mount complex integrated circuit packaging components, the minimum component is 0201, and the highest component height is 20mm.
It is a multi-functional SMT pick and place machine, commonly known as a general-purpose machine.
It has ultra-high precision recognition function, bottom flight recognition camera, ETON three-color lighting recognition technology, high precision is the reliability of the product.
Parameter
| PCB thickness | 0.5-4.5mm |
| PCB size(L* W) |
Max size: 500mm*350mm Min size: 50mm*50mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| Repeat precision | ±0.02mm |
| Off-line programming | Available |
| Mounting speed | 40000CPH(Optimum speed) |
| Power | 380AC 50HZ 4KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
Definition of LED Driver
The LED driver refers to the power adjustment electronic device that drives the LED to emit light or the LED module to form a normal operation, converts the power supply into a specific voltage and current, and drives the voltage converter that drives the LED to emit light.
Features of LED Driver
1. High reliability
2. High-efficiency LED is an energy-saving product, and the efficiency of the driving power supply is higher
3. High power factor
Package
Step 1: Wrap the machine with film first
Step 2: Pack with foam cotton
Step 3: Vacuum bag packaging and vacuuming
Step 4: The film is then wrapped around and fixed
Step 5: Fix the four feet with foot cups to prevent them from slipping during transportation
Step 6: Start packing in wooden boxes, one machine and one wooden box.
Service
Our service can be divided into three parts: pre-sales service, in-sales service and after-sales service:
Pre-sales service can be called professional product consultation. If you are particularly familiar with the patch machine industry, we have special technical consultants to answer the technical questions you want. If you want to move into this industry, we also have special personnel who can provide some information about the patch machine to make you more familiar with the pick and place machine
Service in sales refers to that you have paid a deposit in advance, and after the production of your products, we will regularly share the progress of product production with you. Of course, if you have other requirements during this period, you can also say it, and then we will make your expectations for the products.
After sales service refers to all the services we provide when you receive the products. We have a special after-sales department to serve you, such as guiding installation, training employees, regular follow-up, sharing industry information and so on.
