4KW Automatic Nozzle Cleaner Low Noise For LED Lights Assembly Machine

Automatic Nozzle Cleaner

Features:

1.No cleaning solution required
2.Low noise
3.High efficiency and energy saving
4.24 suction nozzles cleaned at a time

Principle and configuration features of cleaning machine:

1.The suction nozzle cleaning machine adopts a unique mechanical design. It uses fluid mechanics to break the water and produce a very small high-pressure water mist.

2.It forms a powerful kinetic energy jet on the suction nozzle at the sonic speed (v = 360m / s), forms a continuous energy field above the suction nozzle to be cleaned, and thoroughly smashes the dirt on the surface and inside (since the suction nozzle is placed independently, it will not damage the suction nozzle during the cleaning process). After cleaning, it will not damage the suction nozzle During the process, the cleaning solution (deionized water or distilled water) is automatically discharged directly.

3.High quality touch screen human-machine interface, PLC control;

4.The pneumatic part uses imported SMC pneumatic components from Japan, which ensures stable and efficient working efficiency;

5.The key parts of the whole machine are all made of 304 stainless steel imported from Japan, and the special parts are made of 316 stainless steel imported from Japan, so as to ensure that the whole machine will not rust due to the use of water, thus affecting the service life of the equipment and other safety hazards.

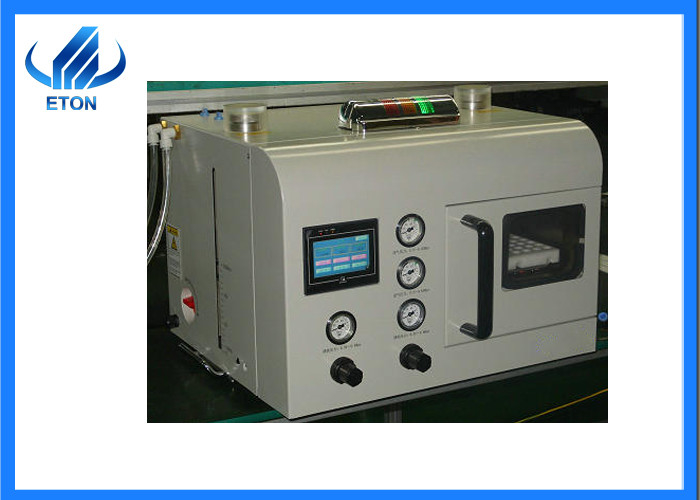

Pictures of Automatic Nozzle Cleaner

Technical parameter

Company Profile
1.ETON is a leading manufacturer of automatic high-speed pick and place machine in China.Have own industrial park in Jiangxi.It's been 10 years.
2.Obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents,12 software copyrights.
3.”High efficiency””high quality””high stability” are the core technology of ETON.
