Product Details:
Payment & Shipping Terms:
|
| Name: | Loader Machine | Model: | ET-L390 |
|---|---|---|---|
| Warranty: | 1 Year | Condition: | New |
| Dimension: | L1500*W920*H1200±30mm | Transmission Motor: | Taiwan 15W Fixed Speed Motor |
| High Light: | single rail SMT Loader machine,Display control SMT Loader machine,touch screen SMT Loader |
||

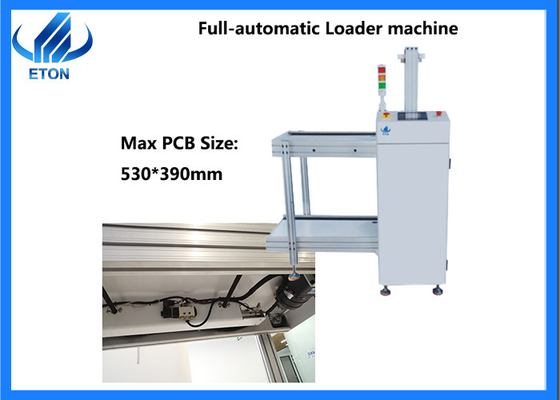

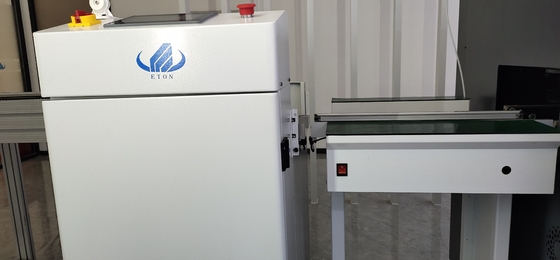

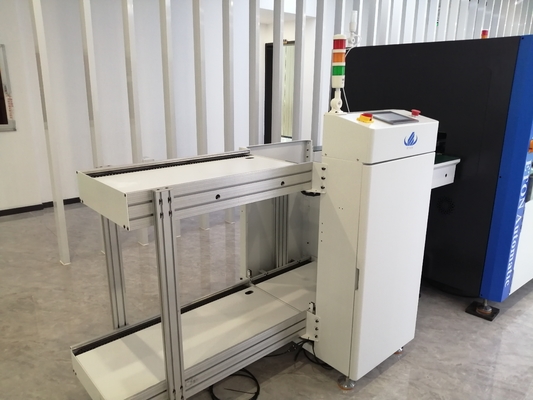

SMT single rail Loader machine Display control true color touch screen
Specification
| Item | ET-L390 send board machine |
| Dimension | L1500*W920*H1200±30mm |
| Turnover box specifications | (L)535*(W)460*(H)565mm |
| Maximum size of PCB | (L)530*(W)390mm |
| Direction | Right to left / left to right |
| Lift platform pitch selection | 10,20,30,40 |
| Transmission height | H=920±30 |
| Controller | Mitsubishi PLC programmable controller |
| Function | Automatically send board |
| Operation control panel | Display control true color touch screen |

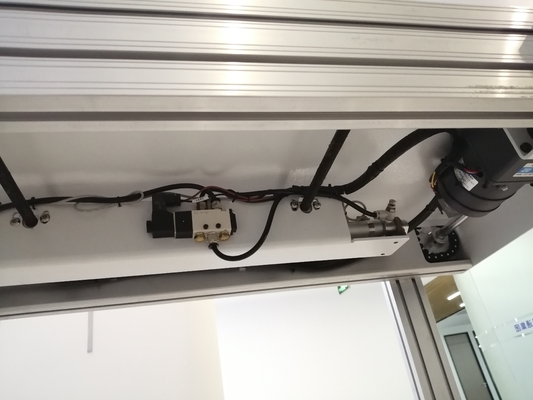

| Pneumatic Components | Push plate cylinder position, adjusted by screw |
Installation notes
1.First of all, determine the direction of the plate, generally when the brick machine, mixer a line installed with side plate; brick machine, mixer placed vertically using the back plate.
2.Make sure that the oil cylinder or other moving mechanism is not above the pallet, which will affect the lower pallet. If there is any influence, move the pallet and feed pallet away.
3.Confirm the partner of non-fired brick machine-the square tube that fixed sprocket position in front of the upper plate machine does not touch the belt machine; 4.Under the possible circumstances, as far as possible on the plate next to the left position, convenient pallet placement, easy to use.
ETON Profile
ETON mission: professionalism, excellent technology, sharing results.
ETON goal: to create a national brand and build an international Chinese enterprise.
ETON purpose: to create value for customers and create benefits for the society.
ETON vision: determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
Packaging
All machines are packed with vacuum and wooden packing
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
FAQ
Q: It’s hard to use the machine?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q:How long is the time of delivery?
Generally, the test delivery period is one month.
Q:If my order is very urgent, how long you can proceed?
We have helped many clients with their urgent demand. If your order is urgent, please check with our specialists to see if we can help.
Q:How are the products packed for sea shipment?
Most of the products have their unique packing, Then we put them into a carton. The cartons are sealed with tape.
Q:How can you make sure that the products won’t be damaged or wet?
We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
