Product Details:
Payment & Shipping Terms:
|
Name: | YT-202 Pick And Place Machine | Place Of Origin: | China |
---|---|---|---|
Warranty: | 1 Year | Mounting Height: | <36mm |
Dimension: | 2317*1376*1762mm | Power: | 380AC 50HZ |
Power Consumption: | 8KW | Mounting Speed: | 90000CPH |
Total Weight: | 1700kg | Visual Camera: | 2 Sets Of Imported Camera |
Drive Way: | High-end Magnetic Linear Motor +servo Motor | ||
High Light: | Automatic Fastest Pick And Place Machine,90K CPH SMD assembly machine,servo motor SMD assembly machine |
Features of SMT smd mounting machine
intelligent electric feeder
Support YT- SERIES double intelligent electric tape reel feeder,By optically correcting the feeding position of the component,it can achieve stable ,accurate and high speed feeding.
High reliability
brand new self-developed high precision placement head.
high speed precision head flight vision camera capture the image of palcement accordingly ,improve the speed and accuracy of placement performqnce.
the placement head adopt independent vacuum detection ,improve placement performance.
off-line programming ,save time of changeover cycle.
software AI intelligent learning function and automatic optimization function

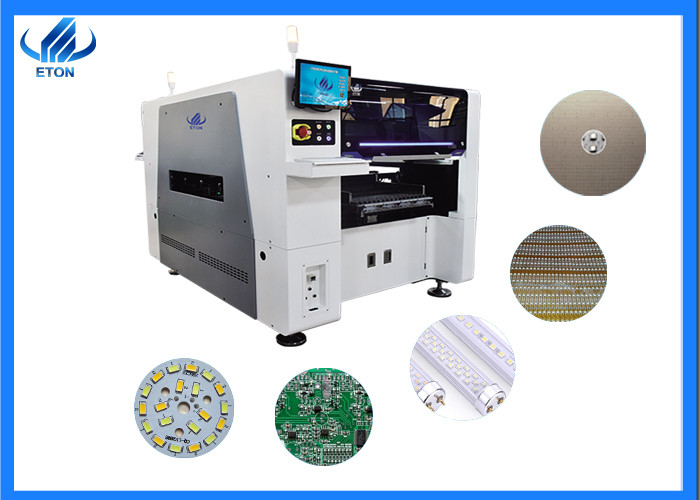

Pictures of pick and place machine
Technical parameter of SMD mounitng machine
PCB length width |
Double module&Double rail: |
Components |
0201 IC 10mm pqckages and IC etc |
Mounting speed |
90000 CPH |
Mounting precision | ±0.03mm(Repeat precision) |
No. Of feeders station | 32PCS(Double material feeder, can load 64 trays of material) |
Power | AC380 50Hz |
Air supply | 0.4-0.6Mpa (4-6Kgf/㎡) |
Vacuum detection | Independent vacuum detection of reclaiming material |
Dimension | L 2317 X W 1376 X H 1762 |
Total weight | 1700kg |
FAQ
1.How is your service?
If you buy our machine,we will send our engineer to your factory to install machine and training freely.
2.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
3.How can you make sure we will receive the machine with high quality?
Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
4.Is your software interface in English?
English interface and Chinese interface are both available.
5.How is the warranty?
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
6. What your main customers?
We have exported machine to different countries,such as India,Egypt,Korea,Turkey,Brazil etc.
Such as FSL,ETI,KONKA,OPPLE,MLS are our client,In india such as RK,Surya,skyquad are our client.
