Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Condition: | Brand-new |
---|---|---|---|
Model: | T9-2S | Dimension: | (L)3454*(W)3035*(H)1777 Mm |
Total Weight: | 3100 Kg | PCB Thickness: | 0.1-0.5 Mm |
PCB Size: | 250(±10)mm* Any Length | Mounting Speed: | Double Side: 500,000 CPH Single Side: 250,000 CPH (Optimum Speed) |
High Light: | Group picking SMT Mounter,Double rail SMT Mounter,50W CPH high speed pick and place machine |

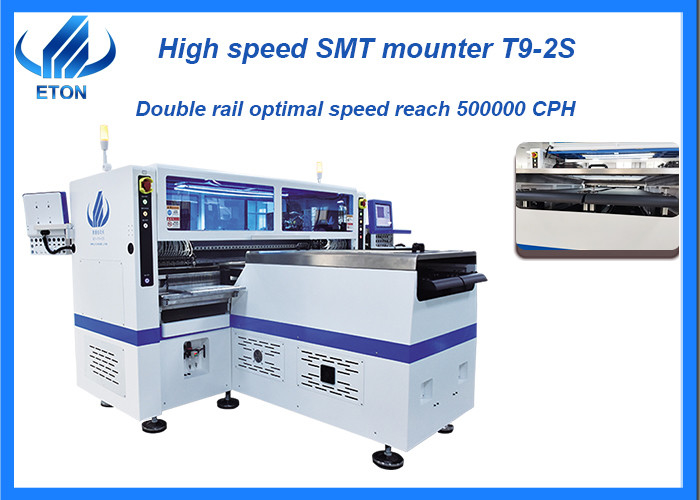

SKD making 50W capacity SMT high speed pick and place machine

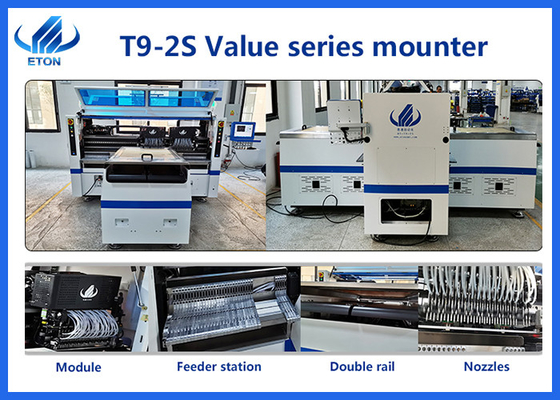

Machine main features
Machine main parameter
Model | T9-2S |
Dimension | (L)3454*(W)3035*(H)1777 mm |
Total weight | 3100 kg |
PCB size | 250(±10)mm* Any length |
PCB thickness | 0.1-0.5 mm |
PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
Mounting way | Group picking and group placing |
Mounting mode | Double rail + Four groups of placement heads |
No. of camera | 10 sets (Digital camera) |
Software | R&D independently |
Repeat precision | ±0.05 mm |
Mounting height | ≦5 mm |
Mounting speed |
Double side: 500,000 CPH Single side: 250,000 CPH (Optimum speed) |
Components range | LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. |
Power consumption | 9.6 KW |
No. of feeder station | Double side: 136 PCS (Single side: 68 PCS) |
No. of nozzles | Double side: 136 PCS (Single side: 68 PCS) |

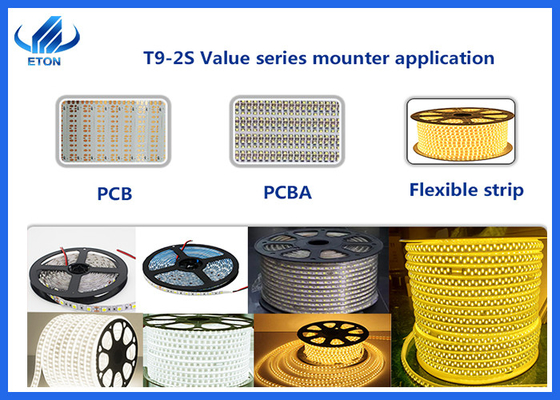

Machine application
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
FAQ
Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
Q. How was your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
Q. How can I contact you to buy the goods in an efficient way?
A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
Q. How can I look around your industrial park if I am on aboard?
A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.
