Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Brand: | ETON |
|---|---|---|---|
| Model: | HT-E8S-1200 | Heads: | 12 PCS |
| Feeder Station: | 28 PCS | Feeding Way: | Electric Feeder With Double Motor |
| High Light: | 12 Heads SMT Mounter,Double Motor SMT Mounter,45000 CPH LED Bulb Assemly Machine |
||

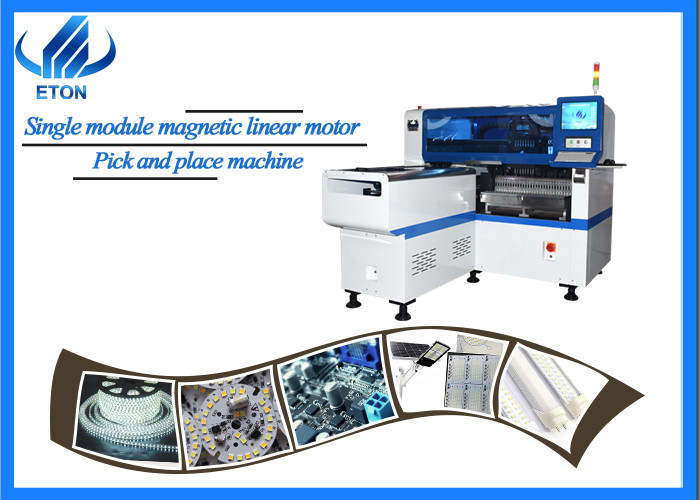

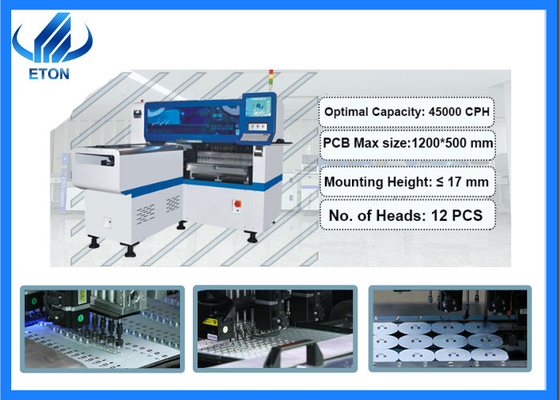

12 heads SMT mounter for LED Bulb assemly machine with windows 7
Technical parameter
Vision alignment flight identification,mark correction
Auto-optimization after coordinates generated
Apply to different kinds of SMD components: LED chip, capacitors, resistors, IC,RGB, shaped components,etc.
Component : Min.size 0402 Max.height 15mm
| HT-E8S Technical Parameter | ||
| 1 | Length*Width*Height | 2550mm*1650mm *1550mm |
| 2 | Total Weight | 1700kg |
| 3 | PCB Length Width | Max:1200*350mm Min:100*100mm |
| 4 | PCB Thickness | 0.5-5mm |
| 5 | PCB Clamping | Adjustable pressure pneumatic |
| 6 | Mounting Mode | Group picking and separate placing,separate picking and separate placing |
| 7 | Software | R&D independently |
| 8 | Display | Touch screen |
| 9 | Input Device | Keyboard,Mouse |
| 10 | No. of Camera | 2 sets of imported camera |
| 11 | Position Camera | Vision for the flight identification + MARK correction |
| 12 | Mounting repeat Precision | ±0.04mm chip |
| 13 | Mounting Height | <15mm |
| 14 | Mounting Speed | 45000 CPH(optimum) |
| 15 | Components | LED chip,capacitors,resistors,IC,RGB,shaped components etc. |
SMT solution
ETON over 10 years experience in SMT machines, so we are very professional to provide whole line solution.
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line.
Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:
APPLICATION:Apply to the DOB,bulbs,flexible strip,tube,tube,display,electric board,
all kinds of driver,etc. 8 nozzles working at the same time,high productivity.
Company profiles
In 2007, Established Taipei R&D Center and began to develop placement machines
In 2015-2017, HT-T7(high speed pick and palce machine)/HT-E9(multi-function machine)was completed R&D and begin selling.
After 2018, HT-E5S/E5D,HT-E8S/E8D(new magnetic linear motor multifunctional placement machine was completed R&D and begin selling.
ETON has invented the fastest automatic pick and place machine with speed 250000CPH. We got large market share in USA, KOREA,INDIA, GERMANY,TURKEY more than 20 countries.We expanded our plant and built a new bigger industrial park in Jiangxi Province.
ETON have modern self-owned industrial park with 52,000 square meters. More than 500 employees , We have strong manufacturing capabilities.The annual sales scaled over 800 million yuan.
ETON smt machines for led production line. all kinds of pick and place machine, conveyor, uploader, stencil printer, relow oven and so on.
Packing
All machines are packed with vacuum and wooden packing like the one in the pictures.
Shipping: --- We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
