380V Automatic Chip Mounter Min 0402 Component LED Lens SMT Assembly Machine

Automatic production Min 0402 component LED lens SMT assembly machine

Product description

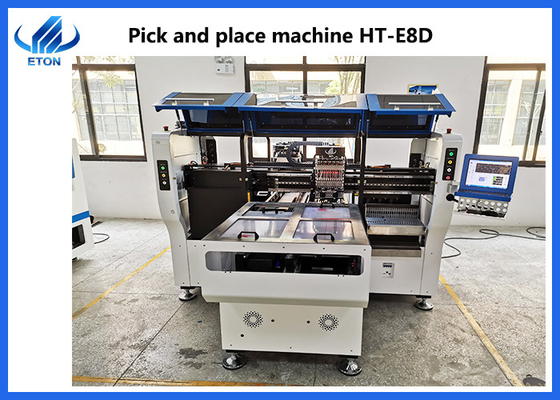

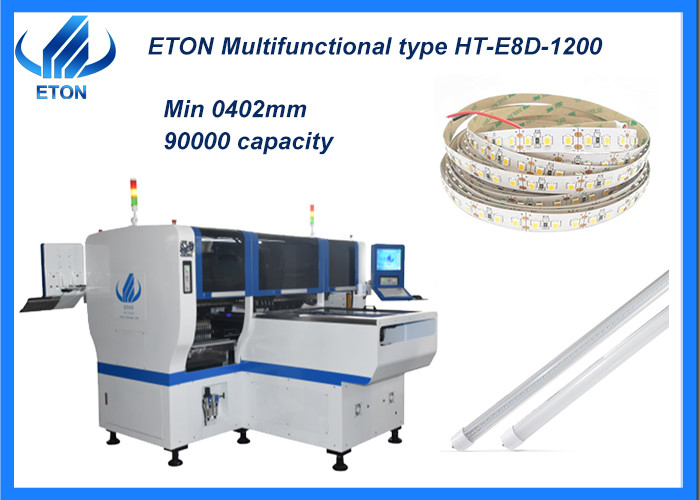

E8D-1200 multifunctional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.

Features:

• Dual system, dual module multifunctional mounter to produce two different products at the same time.
• Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
• Component: Min. Size 0402, Max. Height 15mm.
• Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

Exclusive Patented Technology:

• Electronic feeder feeding system.
• Vision alignment flight identification, Mark correction.
• Non- stop material re-loading function.
• Auto-optimization after coordinates generated, etc.

Machine parameter

SMT Line solution

The equipment required for the semi-automatic production line includes:

• Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
• Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
• Reflow oven: melting the solder paste to make it adhere to the mounting components;
• Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line

Service

High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.

Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.

Quality First, Client-oriented, Continuous Improvement.

24 hours online for you to answer.

Related machine

We can provide a whole SMT production line,led light production line:

1.Pick and place machine

2. Loader machine

3. Conveyor machine

4. Stencil printer machine

5. Reflow oven machine

6. Unloader machine

7. Solder paste mixer

8. Roll to roll led strip light assembly machine

FAQ

Q.How can I make inspection when something wrong with the machine?

A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.

Q. How long is the machine maintenance period, whether it is free?

A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.
