Product Details:
Payment & Shipping Terms:
|
Weight: | 1700KG | Mounting Speed: | 200000-250000 CPH |
---|---|---|---|
Pcb Thickness: | 0.5-1.5mm | Positioning Accuracy: | ±0.02 Mm |
Warranty: | 1 Year | Power Supply: | 380AC 50HZ |
Condition: | New | Feeders: | 68 Pcs |
High Light: | 50m Strip Surface Mount Placement Machine,100m Strip Surface Mount Placement Machine,Dual Arm Surface Mount Machine |

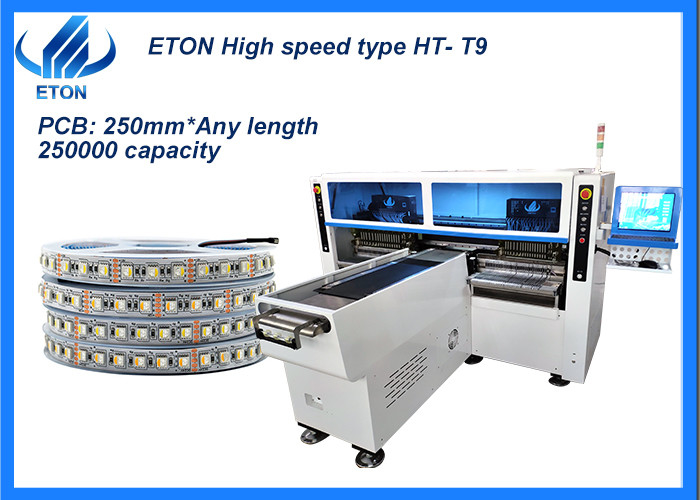

50,100m LED strip 68 heads surface mount part placement mounter
Features
Dual arm magnetic linear high speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000 CPH.
Machine parameter
Model | HT-T9 |
Dimension | 3100*2250*1650mm |
Total weight | 1700kg |
PCB length width | 250mm*any length |
PCB thickness | 0.5-1.5mm |
PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width |
Mounting mode | Group picking and group placing |
Mounting precision | ±0.02mm |
Mounting speed | 20-25W CPH |
No. of feeders station | 68PCS |
No. of head | 68PCS |

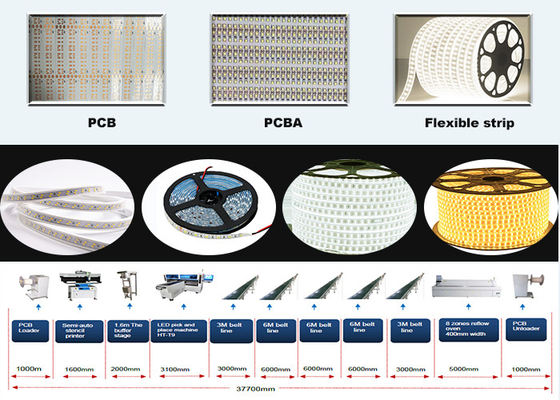

SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 30 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q. What components is your machine mainly mounted?
A. For the multifunctional pick and place machine that can mount IC, LED chip, resistors, capacitors and shaped components like lens. High speed mounter machine mounting components are LED3014/3020/35285050, resistors, capacitors and rectifiers.
Q. How long is the machine maintenance period, whether it is free?
A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.
