Product Details:
Payment & Shipping Terms:
|
| Weight: | 700KG | Voltage: | 220V 50/60Hz 100W |
|---|---|---|---|
| Condition: | New | Plate Type: | Screen Printer |
| Automatic Grade: | Automatic | Dimensions(l*w*h): | 1240(L)*1450(W)*1650(H)mm |

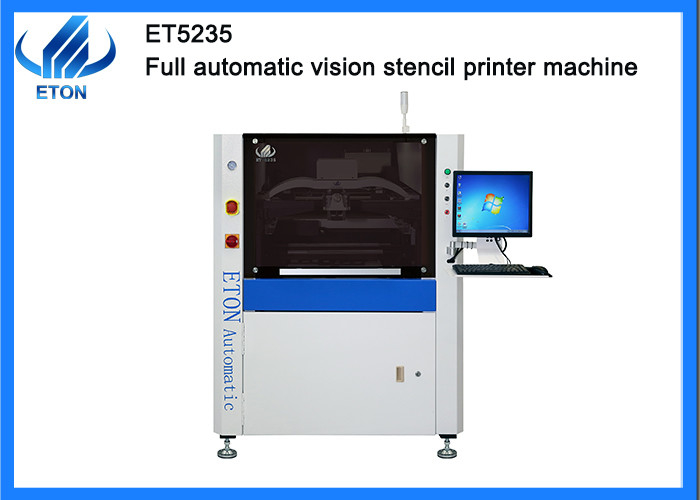

| Warranty: | 1 Year | Name: | Full Automatic SMT Stencil Printer/ PCB Screen Printing Machine |
Features
Technical parameter
| Screen Frames max size | 737mm |
| Screen Frames min size | 470mm |
| Screen Frames thickness | 25~40mm |
| PCB size(L* W) |
Max size:520mm*350mm Min size:50mm*50mm |
| PCB Thickness | 0.6-6mm |
| PCB warpage | ＜1%(Max PCB diagonal) |
| Transport height | 900±20mm |
| Transport direction | Left-Right; Right-Left; Left-Left; Right-Right |
| Transport speed | Max 1200mm/s Programmable |
| Squeegee pressure | 0~10kg/cm |
| Squeegee angle | 55℃Standard |
| Squeegee type | Steel scraper(Standard),PV scraper(Option) |
| Stencil separation speed | 0.1~20mm/sec Programmable |
| Cleaning system | Dry,Wet,Vacuum (Programmable) |
| Table adjustment ranges | X:±5mm;Y:±5mm;θ:±2 |
| Printing accuracy | ±0.025mm |
| Cycle time | ≤9s (Exclude printing & cleaning) |
| Product changeover | <5Min |
| Air required | 2 |
Company Profile
ETON company
Shenzhen ETON Automation Equipment Co.,Ltd. -----Manufacturer of SMT automatic pick and place machine. Our Product playing a leading role in this industry. We have set a long lasting cooperation and partnership with most customers .Warmly welcome all customers to visit our company for friendship and cooperation.
Obtained a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights

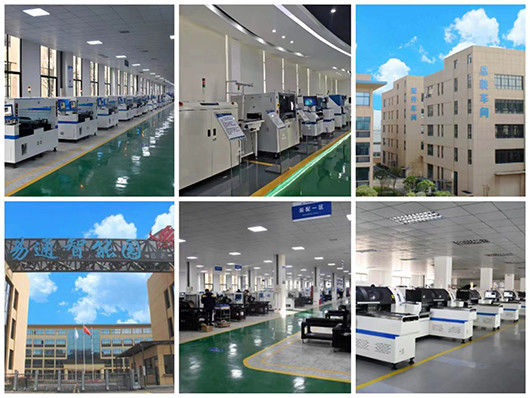

ETON Industrial Park
ETON Team
Package and delivery
1.Standard export vacuum waterproof package
2.Strong wooden package for ensure safely delivery of heavy and large equipment
3.Delivery: By air, sea and railway.
FAQ
We can offer technical support abroad. If you have any technical problem, our engineers
will support you promptly.
After buying our machines, you can send your engineers to our factory, or we send our
engineer to your factory, and then we will train your people to operate these machines.
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the
machines.
T/T is OK. You can choose FOB Shenzhen
