Product Details:
Payment & Shipping Terms:
|
Name: | SMT Automatic Pick And Place Machine | Application: | Led Tube, Panel Light, 0.5m, 1m Led Strip |
---|---|---|---|
Power Supply: | 380AC 50HZ | Warranty: | 1 Year |
Condition: | New | Weight: | 1700KG |
Mounting Speed: | 200000-250000 CPH | Dimension: | 2700*2300*1550mm |
Feeders: | 68 Pcs | ||
High Light: | 250K Capacity LED Tube Making Machine,Four Arm LED Tube Making Machine,Four Arm SMT Pick Place Machine |

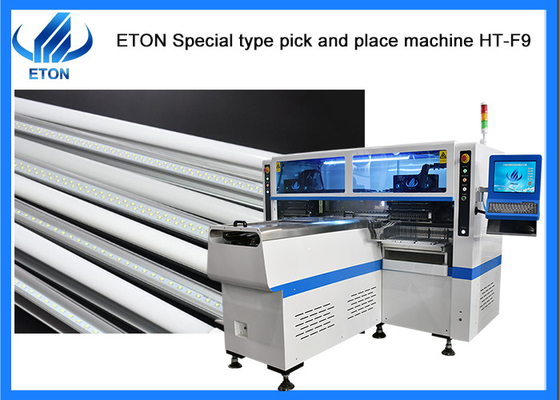

LED tube making high speed 250K capacity four arm pick and place machine
Production description
Features
Machine parameter
Model | HT-F9 |
PCB length width |
Max: 1200*330mm |
PCB thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting mode | Group picking and group placing |
Mounting precision | ±0.02mm |
Mounting speed | 200000-250000 CPH |
No. of feeders station | 68 PCS |
No. of head | 68PCS |
Machine application

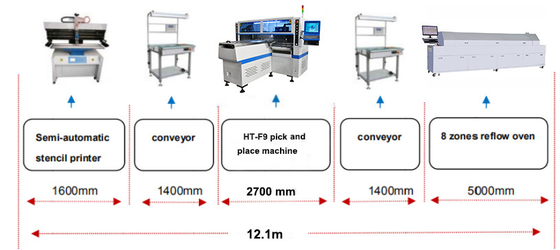

SMT Line solution
Our advantage
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Shipping and Delivery
We usually transport the goods to the port in containers and then ship them to the destination. For the transportation of machines, land transportation and air transportation are also possible.
