Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Application: | SMD Production Line | Power Supply: | 380AC 50HZ |
| Condition: | New | Weight: | 1700kg |
| Mounting Speed: | 250000CPH | Dimension: | 2700*2300*1550mm |
| Item: | LED SMD Chip Mounter | Feeders: | 68 |
| Pcb Thickness: | 0.5~5mm | ||
| High Light: | Flexible Strips SMT Assembly Machine,LED Strips SMT Assembly Machine,68 PCS Feeders SMT Assembly Machine |
||
Detailed description

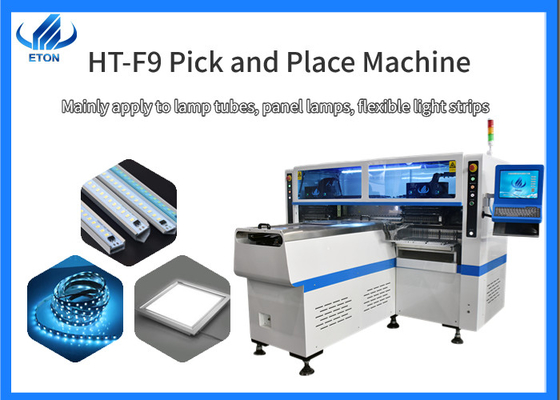

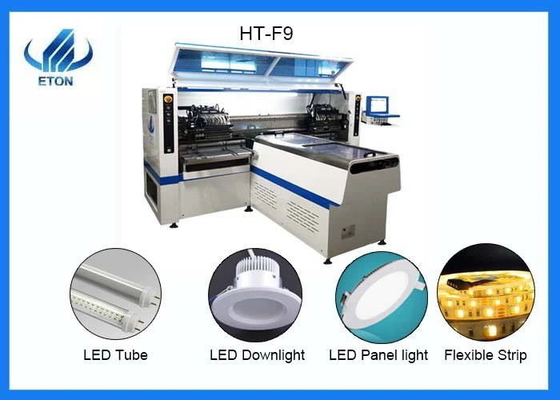

The head of the SMT LED machine has two, consisting of four modules, each with 17 suction nozzles. Using the pneumatic principle, the components are sucked through the head pneumatic device.
The head of the SMT LED machine is equipped with a tank chain to wrap the flat wires on the head, ensuring the translation of the wires on the one hand, and reducing the wear and tear of the wires during work on the other hand, extending their service life.
Parameter
| Product name | SMT LED machine |
| Model | HT-F9 |
| Length: | 2700 mm |
| Width: | 2300 mm |
| Height: | 1550 mm |
| Total weight: | 1700 kg |
| Mounting speed: | 200000-250000 CPH (optimum) |
| No.of camera | 5 PCS |
| No.of nozzles | 68 PCS |
| No.of feeders station | 68 PCS |
| Components | LED 3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers. |
| Feeding way | Electric feeder with double motor |
| Conveyor transmission: | Max length: 1200 mm |
Company
Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine.Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.Eton also has its own industrial park in Jiangxi. We are a powerful company with our own R & D production and sales.And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.
Exhibition
Our company go to many places to participate in the exhibition.
Foreign exhibition: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Domestic exhibition:Guangzhou international lighting Exhibition, Shanghai electronica Exhibition, Chongqing LED Light Exhibition,etc.
