Product Details:
Payment & Shipping Terms:
|
| Dimension(L*W*H): | 2154*1376*1762mm | Weight: | 1700kg |
|---|---|---|---|
| PCB Length Width: | Max Size:500*350mm | PCB Thickness: | 0.5~4.5mm |
| Repeat Precision: | ±0.02mm | Mounting Height: | ≤20mm |
| No.of Camera: | 2 PCS | Components Range: | Min 0201~40*40MM Packages And IC Etc |
| Rail: | Rail 1 Is Fixed | Power Consumption: | 380AC50HZ 4KW |
| Optimum Mounting Speed: | 40000CPH | No. Of Feeders Station: | 16 PCS ,tape Reel Packages 32 PCS |
| No. Of Head: | 10 PCS | Feeding Way: | Intelligent Electric Feeder With Double Motor |
| High Light: | CE High Precision SMT Mounter,SMT Mounter Multifunctional,SMT Mounter For Power Driver |
||

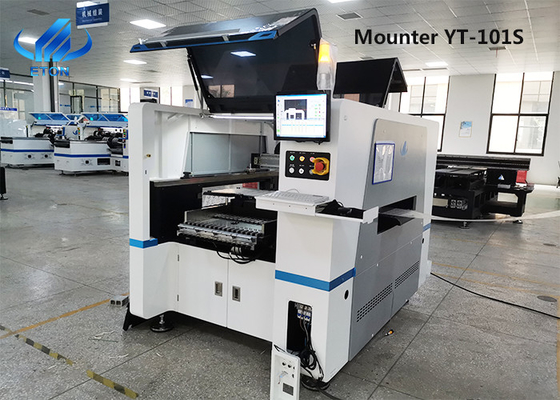

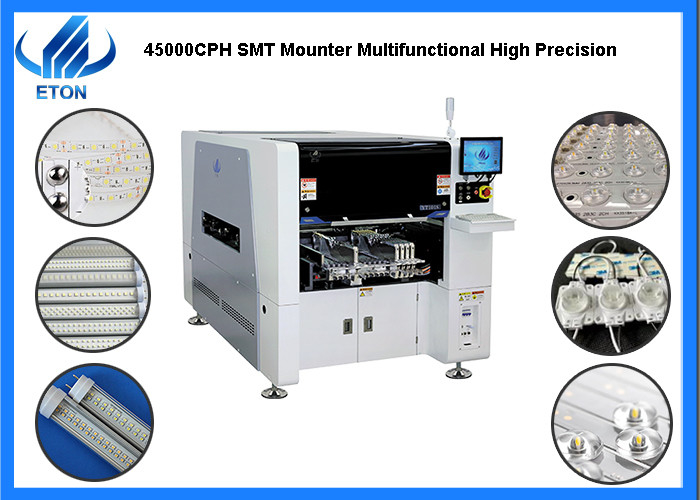

45000CPH SMT Mounter Multifunctional High Precision
The newly launched 10-head high-precision medium-speed multi-function placement machine can
mount more than a dozen products. We can provide free installation and teaching services
Technical Parameter
| Dimension | 2154*1376*1762mm |
| Total weight | 1700kg |
| PCB Length width | 500*350mm 50*50mm |
| No.of camera | 2PCS |
| Mounting precision | ±0.02mm |
| Mounting speed | 45000CPH |
| Mounting height | <=20mm |
| No.of head | 10pcs |
| No.of feeders station | 32Ppcs |
| Feeding way | Intelligent double head feeder |

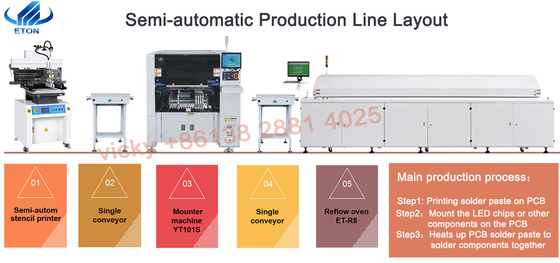

SMT Line solution
The blowing is the function of each machine:
1.Semi auto stencil printer is aim of leaking solder paste or patching adhesive onto the solder pad of PCB to prepare for the welding of components; 2.Conveyor is used for the connection between SMT production lines, as well as buffering, testing, testing PCB boards or manual plug-in of electronic components;
3.Pick and place machine is to mount light beads or other surface mounted components at the designated position of PCB board；
4.Reflow oven is to melt the solder paste to fix and bond the components and PCB board.
Application
Bulb light,DOB bulb,Display,Electric board,Power driver,LED chip board,Wall light,Street light etc.
Company show
The company was founded in 2011, it is a manufacturing and process solution provide focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.
There are 14 years of high-speed Mounter research and development experience, and the production Capacity reaches 500000 CPH.
Market
As for the 10 years experiences of trading with more than 20 countries and region, we have many partner of foreign countries, as South, Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. For more you can see is as blowing:
Introduction of exhibition
Our company go to many places to participate in the exhibition.
Foreign exhibition: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Domestic exhibition:Guangzhou international lighting Exhibition, Shanghai electronica Exhibition, Chongqing LED Light Exhibition,etc.
Service
Professional solutions: Provide professional SMT Full line solutions
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime
FAQ
Q. What is the smallest mounting components of your machine?
A. The min size is 0201 of this machine.
Q. What services can you provide?
A.1)We provide whole line solution for our clients;
We have local engineers in India, Egypt, Turkey. As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learned how to operate the machine, our service is very convenient;
We also have Chinese engineers which provide online services to operate the machine to solve the problems with the machine;
We will visit our clients for twice a year to operate the machine and view the status of the machine;
Our clients enjoy a free up grade of the machine.
Q. Whether you have professional engineers for installation of the machine in India?
A. Yes, we have professional engineers in India to provide considerable service to our clients.
