Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Applicable Components: | 0402 |
---|---|---|---|
Name: | SMT Pick And Place Machine | Application: | SMT Production Line |
Condition: | 100% Original,Brand-new | Weight: | 1700kg |
Mounting Speed: | 45000 CPH | Type: | Automatic |
Usage: | SMT Mounting Machine,LED | ||
High Light: | SMT Mounter for LED Lens,LED Lens SMT Mounter,SMT Mounter 45000CPH |
LED Lens production for Panel light SMT mounter 45000CPH with magnetic linear motor
Technical parameter
HT-E8S-1200 is a smt machine specially designed for lens production with an optimal capacity of 45000CPH.
1 | Components | LED chip,capacitors,resistors,IC,RGB,shaped components etc. |
2 | Total Weight | 1700kg |
3 | Mounting Height | <15mm |
4 | PCB Thickness | 0.5-5mm |
5 | Display | Touch screen |
6 | Mounting Mode | Group picking and separate placing,separate picking and separate placing |
7 | Software | R&D independently |
8 | Position Camera | Vision for the flight identification + MARK correction |
9 | Input Device | Keyboard,Mouse |
10 | No. of Camera | 2 sets of imported camera |
11 | PCB Length Width | Max:1200*350mm Min:100*100mm |
12 | Mounting repeat Precision | ±0.04mm chip |
13 | Length*Width*Height | 2550mm*1650mm *1550mm |
14 | Mounting Speed | 45000 CPH(optimum) |
15 | PCB Clamping | Adjustable pressure pneumatic |
Lens SMT line solution
Step one——Mounting led chip: semi auto stencil printer-conveyor-pick and place machine-conveyor-reflow oven
Step two——mounting the lens: automatic glue dispenser-conveyor-pick and place machine-conveyor-reflow oven

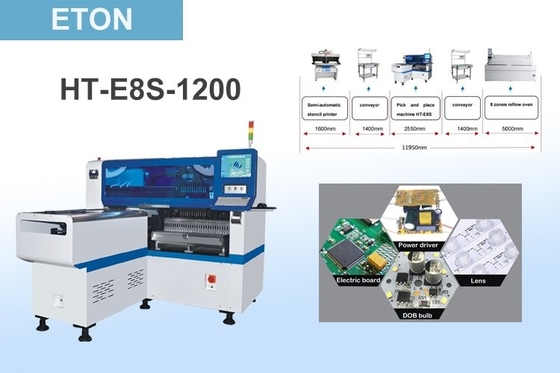

Here are the automatic SMT line solution layout:
Company profiles
ETON over 10 years experience in SMT machines, so we are very professional to provide whole line solution.
ETON got large market share in USA, KOREA,INDIA, GERMANY,TURKEY more than 20 countries, also expanded our plant and built a new bigger industrial park in Jiangxi Province.
ETON have modern self-owned industrial park with 52,000 square meters. More than 500 employees , The annual sales scaled over 800 million yuan.
Exhibition
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries.
Besides, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Packaging
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
FAQ
Q: How to operate the machine?
A: We will provide online video to help you to operate, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.
Q: Does your machines have quality certificate?
A: All of the machines have passed CE,SIRA and CCC certificate and have own patent.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What is the payment way ?
A:We accept the payment terms: L/C, T/T.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
Q: Can you provide a whole line solution?
A: Yes, we can .We can supply SMT line and LED production line.
