Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Usage: | LED Tube Large Qty Production,special For The LED Strip,LED Tube Production |
|---|---|---|---|
| Weight: | 2200KG | Applicable Components: | 0402~5050,0805,sop8 |
| Mounting Height: | <36mm | Dimension: | 3150*2250*1650mm |
| Power: | 380AC 50HZ | Visual Camera: | 2 Sets Of Imported Camera |
| Power Consumption: | 8KW | Warranty: | ONE Year |
| Power Supply: | 220V,50~60HZ | Condition: | New |
| High Light: | Vision System SMD Mounting Machine,SMD Mounting LED Light Production Machine,LED Chip LED Light Production Machine |
||
Strong Stability Pick and Place Machine chip mounting machine
Details of smt mounter
Vision system
2 sets of imported camera
Vision for the alignment identification,mark correction
Visual recognition system can process the absorbed components into the required mounting angle through image recognition, and ensure the mounting accuracy, which can reach 0.02mm.
Strong stability
The use of dual motor electronic flying feeding ensures the mounting accuracy, stability and speed.
High efficiency
Dual system ,Two module ,16 nozzles totally,40 feeders station .
Flight camera component identification method is used to maximize the mounting speed, and the maximum mounting speed is 80000 points per hour.
Easy to maintain
Support Chinese and English operation interface, easy to understand and learn
Machine new equipment, powerful and easy to operate software, simple structure, easy maintenance, low power consumption.
Technical Parameter of Pick and place machine
| HT-E8D pick and place machine | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode |
ØGroup to pick and separate to place ØSeparate to pick and separate to place |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.04mm(repeat precision) | |
| Mounting height | <15mm | |
| Mounting speed | 90000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 8KW | |
| Conveyor transmission | Max length:500mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | High-end magnetic linear machine + Servo motor control for X,Y,Z axis | |
| Feeding way | ||
| Feeding system | No.of feeders station | Duel mode.totally 48 |
| No.of nozzles | Dual mode.totally24 | |
| Feeding way | Electric feeder with double motor | |

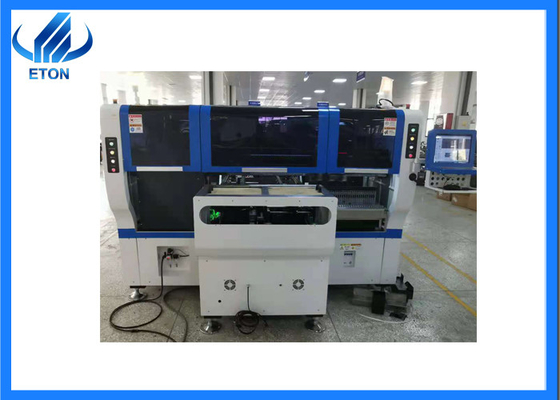

Pictures of SMT machine
