Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 45000 CPH | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,LED | Feeders: | 28 |
1200*350mm lens Panel light mounter
Technical parameter

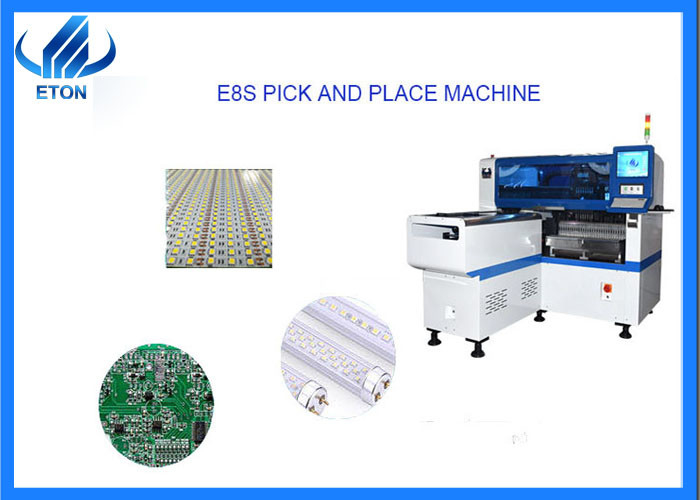

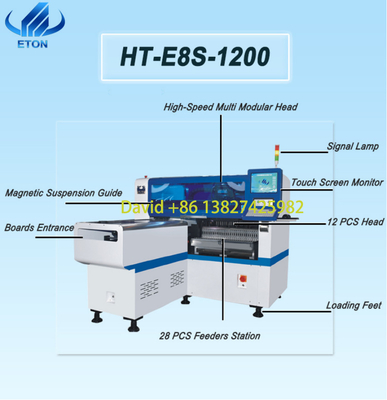

HT-E8S-1200 is a smt machine specially designed for lens production with an optimal capacity of 45000CPH.
| Components | LED chip,capacitors,resistors,IC,RGB,shaped components etc. |
| Total Weight | 1700kg |
| Mounting Height | <15mm |
| PCB Thickness | 0.5-5mm |
| Display | Touch screen |
| Mounting Mode | Group picking and separate placing,separate picking and separate placing |
| Software | R&D independently |
| Position Camera | Vision for the flight identification + MARK correction |
| Input Device | Keyboard,Mouse |
| No. of Camera | 2 sets of imported camera |
| PCB Length Width | Max:1200*350mm Min:100*100mm |
| Mounting repeat Precision | ±0.04mm chip |
| Length*Width*Height | 2550mm*1650mm *1550mm |
| Mounting Speed | 45000 CPH(optimum) |
| PCB Clamping | Adjustable pressure pneumatic |

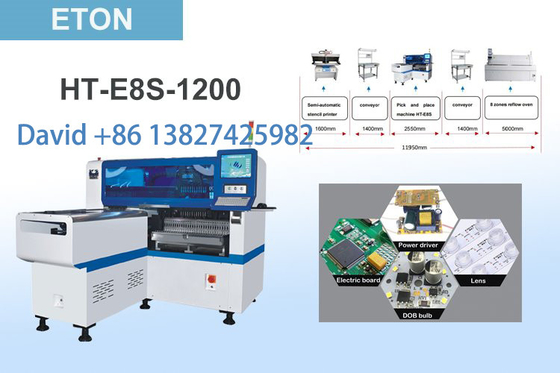

Lens SMT line solution
Step one——Mounting led chip: semi auto stencil printer-conveyor-pick and place machine-conveyor-reflow oven
Step two——mounting the lens: automatic glue dispenser-conveyor-pick and place machine-conveyor-reflow oven

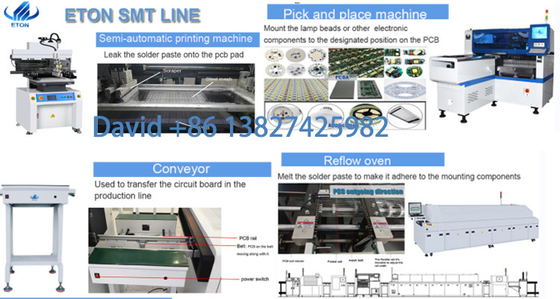

Here are the automatic SMT line solution layout:
Company profiles
ETON over 10 years experience in SMT machines, so we are very professional to provide whole line solution.
ETON got large market share in USA, KOREA,INDIA, GERMANY,TURKEY more than 20 countries, also expanded our plant and built a new bigger industrial park in Jiangxi Province.
ETON have modern self-owned industrial park with 52,000 square meters. More than 500 employees , The annual sales scaled over 800 million yuan.
Service
Company five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
“no worries” after sale service concept: the pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
Visit customers regularly and gather information.
Provide latest information about technology and equipment.
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
FAQ
Can you provide a whole line solution?
Yes , we can. We can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machine can be customize.
Do you have oversea after sale service?
Yes, we can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.
This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation. If you still have any questions, please contact us by e-mail, wechat, phone, Skype,Whatsapp or other contact information.
How long the delivery?
About 30 days.
