Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 45000 CPH | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,LED | Feeders: | 28 |

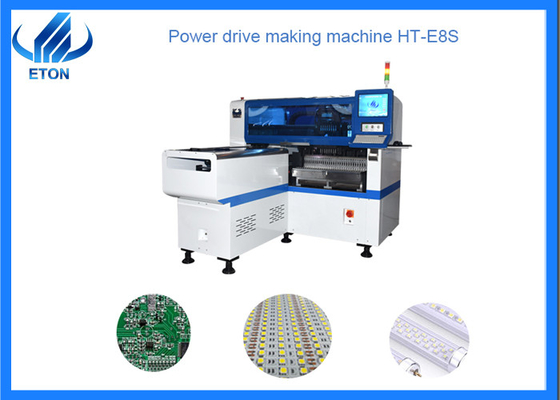

HT-E8S-1200 SMT Mounting Machine for Lens Production, Pneumatic Pressure
HT-E8S-1200 is a smt machine specially designed for lens production with an optimal capacity of 45000CPH.
| Components | LED chip,capacitors,resistors,IC,RGB,shaped components etc. |
| Total Weight | 1700kg |
| Mounting Height | <15mm |
| PCB Thickness | 0.5-5mm |
| Display | Touch screen |
| Mounting Mode | Group picking and separate placing,separate picking and separate placing |
| Software | R&D independently |
| Position Camera | Vision for the flight identification + MARK correction |
| Input Device | Keyboard,Mouse |
| No. of Camera | 2 sets of imported camera |
| PCB Length Width | Max:1200*350mm Min:100*100mm |
| Mounting repeat Precision | ±0.04mm chip |
| Length*Width*Height | 2550mm*1650mm *1550mm |
| Mounting Speed | 45000 CPH(optimum) |
| PCB Clamping | Adjustable pressure pneumatic |
Lens SMT line solution
Step one——Mounting led chip: semi auto stencil printer-conveyor-pick and place machine-conveyor-reflow oven
Step two——mounting the lens: automatic glue dispenser-conveyor-pick and place machine-conveyor-reflow oven
Here are the automatic SMT line solution layout:
ETON Profile
Shenzhen ETON Automation Equipment CO., LTD. is one of very few high-tech manufacturers committed to provide "professional, high efficiency, low consumption" automatic high-speed SMT pick and place machine for customers,combining product development,production,sales and service as one. At present,as for the series "HT" high-speed and multi-functional machine,speed is the world's fastest. "Speed" and "Stability" are the core competencies of ETON,technology innovation and strict quality management principles coupled with excellent service , to enable us provide better professional full SMT solution continously and create superior value for our customers.
Certification
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
FAQ
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
