Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 45000 CPH | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,LED | Feeders: | 28 |
Lens Production SMT Mounting Machine with 45000CPH Capacity pcb assembly line

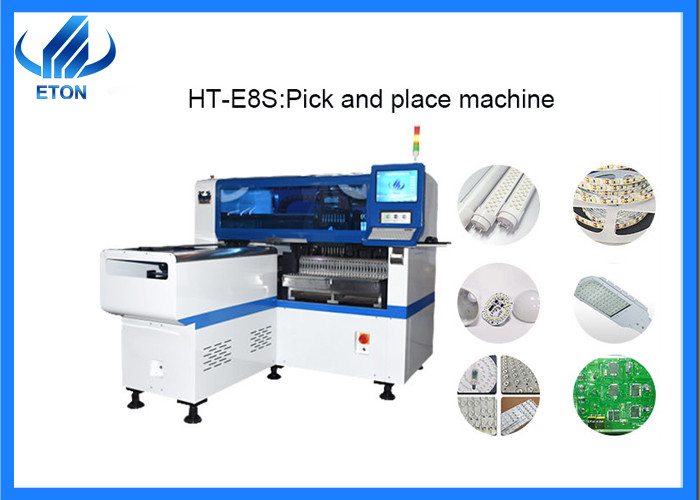

HT-E8S-1200 is a smt machine specially designed for lens production with an optimal capacity of 45000CPH.
| Components | LED chip,capacitors,resistors,IC,RGB,shaped components etc. |
| Total Weight | 1700kg |
| Mounting Height | <15mm |
| PCB Thickness | 0.5-5mm |
| Display | Touch screen |
| Mounting Mode | Group picking and separate placing,separate picking and separate placing |
| Software | R&D independently |
| Position Camera | Vision for the flight identification + MARK correction |
| Input Device | Keyboard,Mouse |
| No. of Camera | 2 sets of imported camera |
| PCB Length Width | Max:1200*350mm Min:100*100mm |
| Mounting repeat Precision | ±0.04mm chip |
| Length*Width*Height | 2550mm*1650mm *1550mm |
| Mounting Speed | 45000 CPH(optimum) |
| PCB Clamping | Adjustable pressure pneumatic |
Lens SMT line solution
Step one——Mounting led chip: semi auto stencil printer-conveyor-pick and place machine-conveyor-reflow oven
Step two——mounting the lens: automatic glue dispenser-conveyor-pick and place machine-conveyor-reflow oven

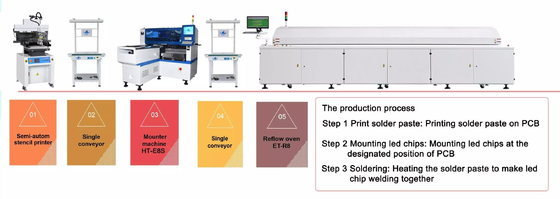

Here are the automatic SMT line solution layout:
Exhibition
Our products not only sell well in China, but also exported to more than 20 overseas countries,
such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.And
we also participate in many abroad and domestic exhibition .
Abroad: Thailand Exhibition, Turkey exhibition, India Mumbai exhibition, India Delhi exhibition,
Pakistan exhibition, Egypt exhibition and others.
Domestic :Guangzhou Guangya Exhibition, Shanghai Munich exhibition and Chongqing led exhibition
and so on.
Capacity
The HT-E8S-1200 SMT machine Use newest high magnetic linear motor, the speed and accuracy is better than normal machines. The mounting speed can reach 45000CPH, the actual capacity is about 60% of the optimal capacity.
The main factors affecting the productivity are: The time of the incoming and outgoing plates, whether the plates are received and delivered in time, whether the plates are delivered in time,
the number of plates put together, the number of heads used, the type of components, the number of components.
FAQ
Q:Why choose us?
A: We provide professional in SMT line for 11 years,with strong production and strong capacity and R&D team,Has provided a lot of clients with modern SMT production line solutions.
Q: What about the shipping methods?
A: A variety of transportation methods for you to choose. By sea, air and road.
Q: Do you have service office in India?
A: Yes, we have service office in Deli and Mumbai,and we have three India local engineers can support quickly.
Q: What is the mounting modeof your SMT machine?
A: Our multifunctional pick and place machine can group picking and separately placing or separately picking and separately placing, high-speed pick and place machine can group picking and group placing.
