Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | LED Welding Machine For Soft Light Strip Plate |
|---|---|---|---|
| Application: | LED Soft Strip | Power Supply: | 220V,50-60HZ |
| Condition: | New | Weight: | 100KG |
| Product Name: | ET-800 | SIZE: | 1600*1200*1400（Length*Width*Height） |
| High Light: | Soft Light LED Welding Machine 220V,5m Strip Plate LED Welding Machine |
||
LED soft light strip plate welding machine substitute manual soldering work
Product Brief:

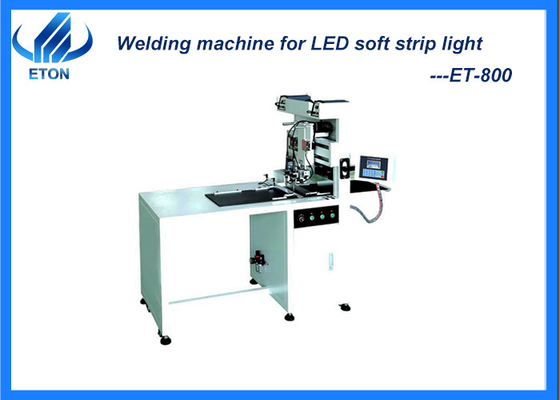

ET-800 LED Soft light strip plate Welding machine is a dedicated automatic welding equipment for 5 meter LED strip welding, according to the characteristics of LED equipment 5 meters depth of humanization design, engaged in a variety of different solder joints instead of manual soldering work, solve the manual welding of weld solder joint is not uniform, and other phenomena, and compatible with a variety of types of LED soft strip size of welding, simple operation and high practicability, quality stability, greatly enhance the efficiency.
Scope of application:

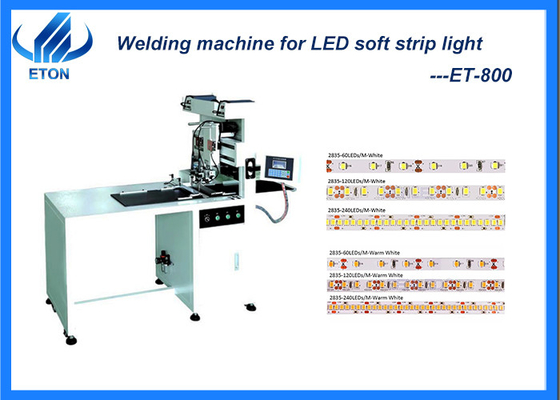

LED soft light plate soldering machine application range: suitable for LED monochromatic light, 5050 RGB lamp string, lamp belt, lamp strip and other products
Technical parameters:
| Item | parameter |
| Device name | LED welding machine for soft light strip plate |
| Model | ET-800 |
| control mode | 32 position DSP |
| Welding head | 2 iron heads work at the same time |
| Working stroke | X axis 350MM,Z axis 150MM,platform 1000MM |
| Repeatability accuracy | ±0.05mm |
| Equipment power | 600w |
| Power Supply | 220V,50-60HZ |
| weight | 100KG |
| Size | 1600*1200*1400(Length*Width*Height) |
Market
Our products are exported to more than 30countries & regions
Such as South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, Iran, Vietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
