| Warranty: | 1 Year | Applicable Components: | 0805,0603,1206 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine,SMT Chip Mounter | Application: | SMT Production Line |
| Condition: | New,100% Original,Brand-new | Mounting Speed: | 500000 CPH |
| Type: | Automatic | Usage: | SMT Mounting Machine,LED |
| High Light: | LED chip mounter For 100m led,LED chip mounter for LED Strip,500000CPH LED chip mounter machine |
||

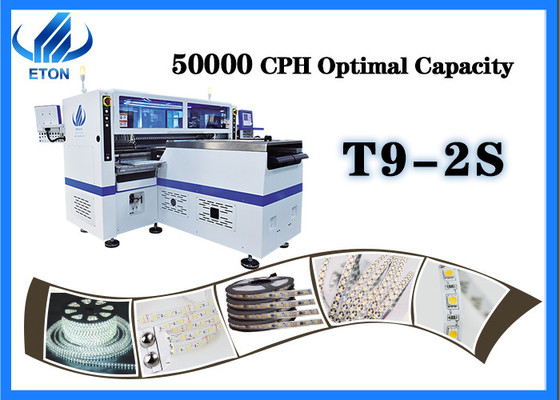

100m Led strip mounter 136 nozzles with 500K
Features
High Accuracy Magnetic Linear Motor + Panasonic Servo Motor
136 heads 136 feeder stations Four Arm four module , 34 nozzles for each mounting part. Part A or part B can be mounted separately or synchronously.
Vision alignment, Mark correction
Calibration automatically, high precision, available for RGB
Capacity can Reach 500000 CPH
Parameter
| Dimension (L*W*H) | 3454*3035*1777 mm |
| Total weight | 3100kg |
| PCB Length width | 250mm*any length |
| PCB thickness | 0.1-0.5mm |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| No.of feeders station | 136 PCS |
| No.of head | 136 PCS |
| Mounting speed | 500000 CPH |
| Components | LED3014/3020/3528/5050,Capacitance, resistance, bridge stack, etc |
| Operating environment | 9.6 KW |
LED Flexible Strip Production Process
| Step 1 | Loader Machine | Sending the FPCB roll to printer machine |
| Step 2 | Semi-automatic Stencil Printer | Printing the solder paste on the flexible PCB |
| Step 3 | Buffer Stage | Buffer and transport the flexible PCB to pick and place machine |
| Step 4 | Pick and Place Machine | Mounting LED chips and components on flexible PCB |
| Step 5 | Transportation Belt Line | Transport the flexible PCB to reflow oven |
| Step 6 | Reflow Oven | Heating the solder paste with FPCB to welding the components on FPCB |
| Step 7 | Unloader Machine | Rewinding the finished Flexible strip |
