| Name: | SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle | Power Supply: | AC220V 50Hz |
|---|---|---|---|
| Head: | 20 Pcs | Feeder Station: | 104pcs |
| Mounting Speed: | 98000CPH | Mounting Height: | <16mm |
| Total Weight: | 1850kg | Applicable Components: | 0402,0805,0603,1206,SOP |
| Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine | Warranty: | 1 Year |
| High Light: | IC Tray pcb mounting machine,pcb mounting machine for electric board,Pick Place pcb mounting machine |
||

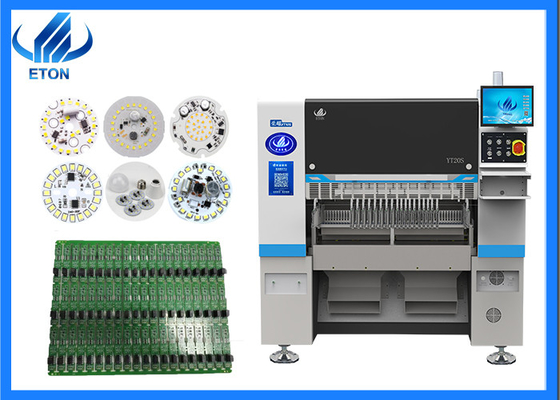

YT20S high speed smd mounting machine,with newested Technology,Double model and two heads with 20 nozzles.High speed and high precision.
Flexible handling capabilities,Realize multi-feeder station and multi materials mounitng
Apply to 0201~35*35mm tape reel packge and IC tray feeder
Application:power driver,electric board,homehold electric board,3C product PCB board,etc
Technical Paremeter
| Model | YT20S |
| Dimension | |
| Length | 1480mm |
| Width | 2680mm |
| Height | 1650mm |
| Total Weight | 2380kg |
| PCB | |
| PCB Length Width | Max:500*300mm(1200*450 option) Min:50*50mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Cylinder clamping, track width adjustable |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 1 PCS (Head flight vision camera) |
| 2 PCS Mark camera | |
| Mounting Precision | CHIP±0.03mm QFP±0.025mm Cpk ≧1.0 (3σ) |
| Mounting Height | ≦16mm (Other height can be customized) |
| Mounting Speed | 98000 CPH(Under best condition) |
| Components | 0201~12MM packaging material and IC material(Optional fixed camera for 0201~35*35MM),Other component size can be customized |
| Components Speed | 0.2mm |
| No. of Feeders Station | 104 PCS |
| No. of nozzles | 20 PCS |
| Power | 220AC 50HZ |
| Power Consumption | 1.5kw |
| Operating Environment | 23℃±3℃ |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Position Mode | Optical |
| Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor |
| Feeding way | Intelligent feeder with double motor |
| Production management MES system interface | Customized |
