Automatic pcb mounting machine 250000CPH led resister mount smt production line

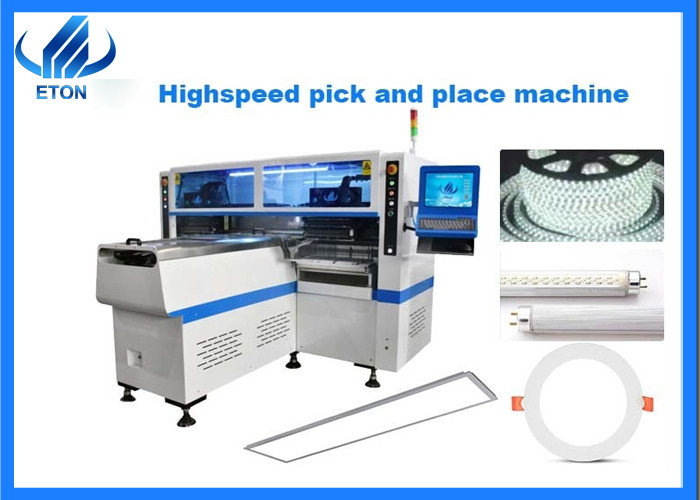

​High efficiency Full-automatic 250000 CPH pick and place machine for Led tube/strip /panel lamp

Production features

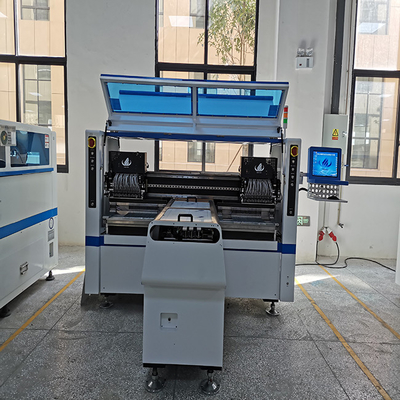

HT-F9:Dual arm magnetic linear LED high speed pick and place machine.

Mounting components: led3014/3020/3528/5050 and resistor,capacitor,bridge rectifiers.

Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.

Dual arm four module, 17 nozzles for each part,total 68 head.Producing with 4 types materials at the same time with high capacity, available for board with any proportion of Led chip and resistor.

Mounting speed reached 200000 to 250000CPH.

Advantages

1.Brand guarantee.

2.having decades experience in this field.

3. This machine's mounting speed has broken the world record, which reached 200000~250000 CPH.

4.Quality assurance.

5.Quick delivery.

Machine parameter

Application

Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m Led flexible strip.

F9 as the high speed mounter machine , widely apply to many kind of led linear module, such as the strip light, panel light, tube light, etc.

​

Company profile

Our Company Advantage:

Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011. with over 10 years experience in SMT machine. Rich experience and professional in SMT machine. ETON is a manufacturing and process solution provider focusing on R&D, Production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The machine update and update, has a high stability.

ETON advantage: Strong manufacturing capabilities,Product,Patents and Honor,Five star service,Large market share,Exhibition,Packing and Delivery

1. Strong manufacturing capabilities:

1) Own Industry Park is located in Jiujiang, Jiangxi, with 7 buildings,over 50000 square meters.

2) The Global Largest Production Capacity Supplier of LED Production Line. Control quality from the source. Support customization: OEM/ODM. Sometimes the machine is in stock. if you pay and we get the payment, we can arrange delivery immediately.

3) Most of mechanical part are manufactured by ETON,Show our work shop to you, such as: CNC workshop,Assembly workshop,Powder Spraying Workshop,etc.

Exhibition

ETON committed to creating an international pick and place machine brand. We have participated in many exhibitions every year. Including domestic exhibitions and foreign exhibitions(except the epidemic period).Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul etc.

​

Package

Step 1: Wrap the machine with film first

Step 2: Pack with foam cotton

Step 3: Vacuum bag packaging and vacuuming

Step 4: The film is then wrapped around and fixed

Step 5: Fix the four feet with foot cups to prevent them from slipping during transportation

Step 6: Start packing in wooden boxes, one machine and one wooden box.

FAQ

Q:How long is the time of delivery?

Generally, the test delivery period is one month.

Q:If my order is very urgent, how long you can proceed?

We have helped many clients with their urgent demand. If your order is urgent, please check with our specialists to see if we can help.

Q:How are the products packed for sea shipment?

Most of the products have their unique packing, Then we put them into a carton. The cartons are sealed with tape.

Q:How can you make sure that the products won’t be damaged or wet?

We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
