Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 45000 CPH | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,LED | Feeders: | 28 |
| High Light: | 12 heads SMT Making Machine,high component SMT Making Machine,DOB Bulb SMT Making Machine |
||

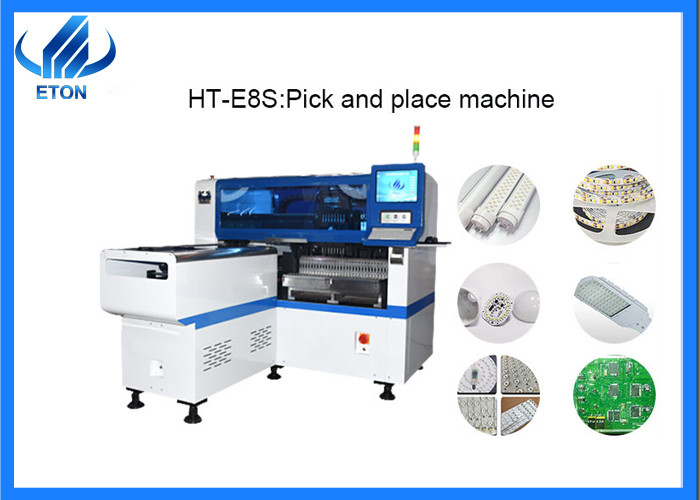

Multifunctional LED products SMT machine
Machine main features
Single module magnetic linear motor multifunctional pick and place machine.
Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
Component: Min.size 0402. Max.height 15mm.
Application: power drive. electric board. Lens. DOB bulb. Linear bulb. Household appliance,etc.
Production parameter
| Dimension | 2550*1650*1550mm |
| Weight | 1700KG |
| PCB size | Max.1200*500 Min.100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting speed | 45000CPH |
Company profile
Shenzhen ETON Automation Equipment Co.,Ltd. Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
SMT Machine
For SMT peripheral equipment: it is mainly included automatic Loader machine, Automatic stencil printer machine, Semi automatic stencil printer machine, Conveyor machine, Pick and place machine, Reflow oven machine, Un-loader machine, testing machine( SPI, AOI, X-RAY ) etc.
All of our SMT pick and place machine and SMT peripheral equipment is supported to customize according to the requirement of customers
LED Tube light production craft Introduction
Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.
Pick and place machine: Mount the electronic component at the specified position on the PCB.Reflow oven: Melt the solder paste and fix it to the mounting element.
Single conveyor: Inspect the quality of assembly and welding to cushion the production line.
Certificate
We got 9 invention patents, 112 practical patents,12 software patents.
FAQ
Q: What service you can enjoy if you purchase LED SMT pick and place machine from us?
A: 1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organisation and working system, guarantee you a fast delivery!
4) Supply you all the SMT proecssing related machines and devices with best prices!
Q: What's your delivery date?
A: The delivery date is about 30 days upon the down payment.
Q:This is the first time I use this kind of machine, is it easy to operate?
A: There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
hine, conveyor, pick and place machine and reflow oven.
LED Lens production craft Introduction
Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.
Pick and place machine: Mount the electronic component at the specified position on the
PCB.Reflow oven: Melt the solder paste and fix it to the mounting element.
Single conveyor: Inspect the quality of assembly and welding to cushion the production line.
glue dispenser machine: A device that dispenses patch glue to the pad of a PCB in preparation for lens mounting.
For the products that need to be pasted, it is often necessary to first paste the LED chips and then paste the lens, and the two kinds of pasting are two separate patch lines, because the temperature requirements of the lamp bead and lens are different, and the lamp bead needs to be welded through the furnace and then paste the lens.
