Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | China | Name: | Smd Pick And Place Machine |
|---|---|---|---|
| Warranty: | 1 Year | Dimension: | 3150*2250*1650mm |
| Total Weight: | 2000kg | Power: | 380AC 50HZ |
| Power Consumption: | 8KW | Mounting Speed: | 80000CPH |
| Mounting Height: | <36mm | Visual Camera: | 2 Sets Of Imported Camera |
| Drive Way: | High-end Magnetic Linear Motor +servo Motor | Heads: | 24 PCS |

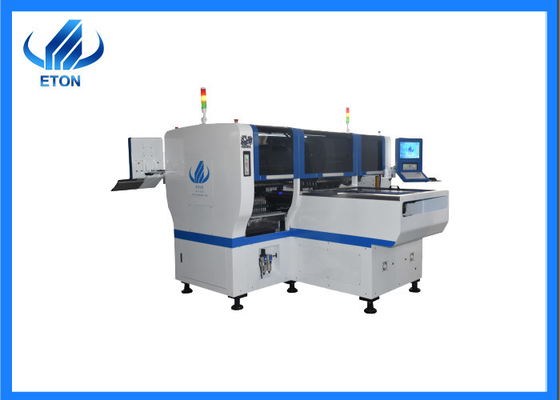

high speed 90000CPH SMD surface mount pick and place machine in smt production line
Function of SMT pick and place machine
Exclusive Patented Technology
Electronic feeder feeding system
Vision alignment flight identification,mark correction
Non-stop material re-loading function
Non-stop material re-loading function
Features of SMD pick and place machine
Vision system
2 sets of imported camera
Vision for the alignment identification,mark correction
Visual recognition system can process the absorbed components into the required mounting angle through image recognition, and ensure the mounting accuracy, which can reach 0.02mm.
Strong stability
The use of dual motor electronic flying feeding ensures the mounting accuracy, stability and speed.
High efficiency
Dual system ,Two module ,16 nozzles totally,40 feeders station .
Flight camera component identification method is used to maximize the mounting speed, and the maximum mounting speed is 80000 points per hour.
Easy to maintain
Support Chinese and English operation interface, easy to understand and learn
Machine new equipment, powerful and easy to operate software, simple structure, easy maintenance, low power consumption.
Technical parameter of pick and place machine
| Technical parameter | |
| PCB | |
| PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumatic |
| O.S. | |
| system | Windows7 |
| software | R&D independently |
| display | Touch screen monitor |
| input | Keyboard mouse |
| Feeding system | |
| No. of feeders station | Dual mode ,totally 40 |
| No.of nozzles | Dual mode,totally 16 |
| Feeding way | Electric feeder with double motor |
SMT Line
Our Partners
ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.
Industrial Park
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
we will send our engineer to your factory to install machine and training freely.
We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
FAQ
What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
How about your operating system?
The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
What is the delivery date?
We will deliver the goods after 30 days' deposit.
What mode of transport does the goods adopt?
Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
What is the direction of transmission of machines?
The transmission direction of this machine is single direction.From left to right or from right to left.
