| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
| Condition: | New,100% Original,Brand-new | Mounting Speed: | 45000 CPH |
| Type: | Automatic | Usage: | Circuit Board Assembly,SMT Mounting Machine,LED |
| High Light: | SMD Production Line With Magnetic Motor,SMD Production Line With Servo Motor,Semi Automatic SMD Mounting Machine |
||

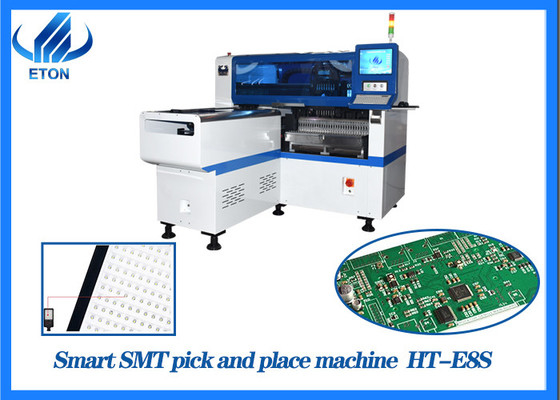

E8S-1200 LED Pick and Place Machine: 45000CPH, Dual System, Dual Module, 4 Cameras
1.HT- E8S - 1200 semi - automatic production line is suitable for mounting all kinds of LED lights and circuit boards For example: LED bulb, DOB bulb Panel lamp, Down-light, Lamp tube, Street lamp, Display screen, Circuit board and Other products.
2.HT-E8S-1200 SMT Line Maximum PCB size is 1200 * 350mm
(HT-E8S-1200 Maximum PCB Width could be adjust to 500mm)
Technical parameter
| Model | HT-E8S-1200 |
| Dimension | |
| Length | 2550 mm |
| Width | 1650 mm |
| Height | 1550 mm |
| Total Weight | 1700 kg |
| PCB | |
| PCB Length Width | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 2 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Speed | 45000 CPH |
| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
E8S-1200 pick and place machine can mount diversified LED products, such as bulbs, tube, down light, ceiling light, street light, flexible strip, display, and DOB, power driver, circuit board, and household appliance, etc
Certificates
ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade. We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 11 years) in LED light production line program.
Here are the picture for your reference:
FAQ
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
