Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Dimension: | 2550*1650*1550mm |
|---|---|---|---|
| Usage: | LED Tube Large Qty Production,special For The LED Strip | Software: | R&D Independently |
| Condition: | New | System: | Windows7 |
| Feeders: | 30 PCS | Warranty: | 1 Year |
| Total Weight: | 1250kg | Speed: | 40000CPH |
| Nozzles: | 8PCS | Component Range: | 0603~8520 Chip,0402-32*32mm |
| High Light: | Automatic 0402 SMD mounting Machine,5050 SMD mounting Machine,LED Tube Light Manufacturing Machine CE |
||
Features of SMT pick and place machine
Mutifunctional pick and place machine
Application for LED bulbs,led light,tube,bulb,panel light,flexible light strip,street light,downlight, led display screen,power driver, etc.
Mounting components :LED,capacitors,resistor,IC,shaped components,etc
Strong stable
High-end magnetic linear motor and servo motor Ensure the stable operation of the machine
High capacity
The feeding way is electric feeder with double motor,keep the machine running at high speed.with 45000CPH.
High precision
2 sets of imported camera,vision mark ,Visual Mark, Automatic Search for Mark Points.keep high precision.
High Efficiency
Maximize Time Saving and Improve Production Efficiency
Improve accuracy and avoid defective products
Technical parameter of SMD mounting machine
| HT-E8S pick and place machine | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 45000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 30PCS | |
| No.of nozzles | 8PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |

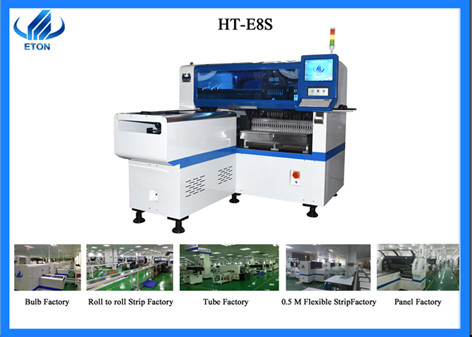

Picture of E8S smd mounting machine
Application of SMT production line
amps and lanterns: fluorescent lamp, bulb lamp, ceiling light, panel light, cast light lamp, mining lamp, down light, etc
Lighting: soft light tube, hard tube, advertising module, etc
Pasting class: LED watch pasting
SMT machine Service
1. Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
