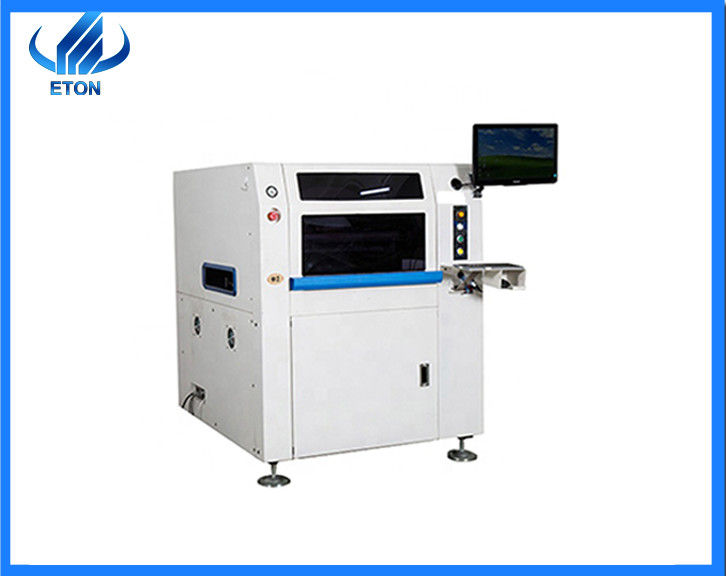

0.025mm Printing Accuracy Smt Production Line Stencil Printer Machine Automatic

0.025mm Printing Accuracy Smt Production Line Stencil Printer Machine Automatic
0.025mm Printing Accuracy Smt Production Line Stencil Printer Machine Automatic

Large Image :  0.025mm Printing Accuracy Smt Production Line Stencil Printer Machine Automatic

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC
Model Number: ET-F400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 4 weeks after payment
Payment Terms: T/T, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Apply: Smt Production Line Squeegee Speed: 6~200 Mm/sec
Squeegee Angle: 60°/55°/45° Packing: Wooden Case
Printing Accuracy: ±0.025mm Name: Stencil Printer
High Light:

smt pick and place machine

,

smt pick and place equipment

ET-F400 Automatic stencil printer



SMT production line



In the automatic smt production line, loader machine send board to printer, then through the conveyor, pcb board sent to pick and place machine from printer, after mounting components, pcb board sent to reflow oven, once again bonding the reinforcing element to the pcb board. Lastely, unloader machine would collete the processed pcb board.

ET-F400 apply to smt production line, it is automatic, totally printing by machine.



PCB size



ET-F400 max pcb size is 400*340 mm, min size is 50*50 mm, thickness is 0.4-6 mm, pcb warpage no more than one percent.



PCB location



PCB support system is magnetic pin/up-down table adjust/supportblock. Clamping system is side clamping and vacuum nozzle.



Screen frames



ET-F400 max screen frames size is 737*737 mm, mmin size is 370*370 mm, thickness is 25-40 mm.



Transport system



ET-F400 transport height is 860-940 mm, transport direction is left-right, right-left, left-left or right-right. Max transport speed is 1500mm/s programmable.



Print head



ET-F400 have two independent motorised printheads.



0.025mm Printing Accuracy Smt Production Line Stencil Printer Machine Automatic 0



Squeegee parameter



Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15Kg
Squeegee Angle 60°/55°/45°
Squeegee Type Stainless steel(Standard), plastic
Stencil Separation Speed 0.1~20mm/sec Programmable



Cleaning system



There are three ways to cleaning, dry, wet, vacuum.



Parameter of machine



Repeat Position Accuracy ±0.01mm
Printing Accuracy ±0.025mm
Cycle Time <7s (Exclude Printing & Cleaning)
Product Changeove <5Min
Air Required 4.5~6Kg/cm2
Power Input AC:220±10%,50/60HZ 1Φ 3KW
Control Method PC Control
Machine Dimensions 1220(L)X1355(W)X1500(H)mm
Machine Weight Approx:1000Kg



Our service



1.We provide one year standard warranty.

2.We will sent our engineer to install and traning for freely.

3.We will provide The latest technical support



F&Q



1.Is your software interface in English?

English interface and chinese interface are both available.

2.Which counties have your machine exported?

Our machine have expored more than 20 countries, such as India, Egypt, Korea, Turkey, Brazil, Vietnam, and so on.

3.Who is your client?

Such as FSL, ETI, KONKA, OPPLE, MLS are our client. In India, such as RK,Surya, skyquad are our client.
