High Speed Dual Arm 200000 CPH SMT Mounting Machine 5pcs Camera

High Speed Dual Arm 200000 CPH SMT Mounting Machine 5pcs Camera
High Speed Dual Arm 200000 CPH SMT Mounting Machine 5pcs Camera

Large Image :  High Speed Dual Arm 200000 CPH SMT Mounting Machine 5pcs Camera

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: HT-F9

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: wooden box with vacuum package
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Dimention: 2700*2300*1550 Total Weight: 1700kg
PCB Length Width: Max:1200*330mm MIN:100*100mm PCB Thickness: 0.5-5mm
System: Windows 7 Software: R&D Indepentently
No.of Camera: 5 Sets Mounting Speed: 200000-250000CPH
Components: LED 3014/3020/3528/5050 And Resistor,capacitor,bridge Rectifiers,etc. Electrical Control: Indepentent Research And Development By Eton.
High Light:

200000 CPH SMT Mounting Machine

,

5mm pcb SMT Mounting Machine

,

5mm smt pick and place machine

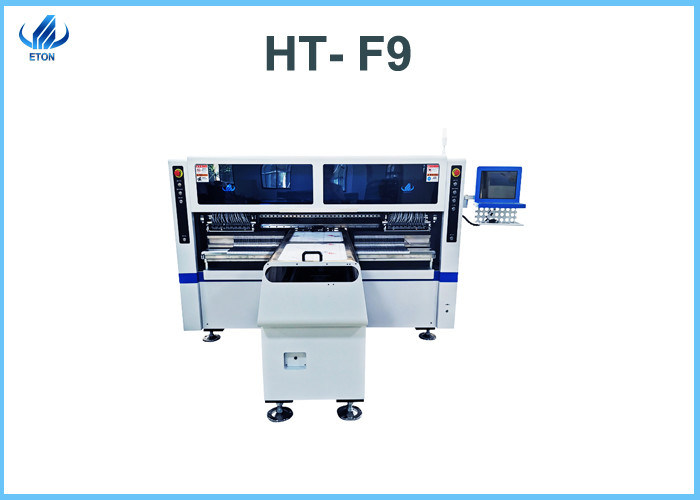

 High Speed Dual Arm 200000 CPH SMT Mounting Machine 5pcs Camera

Dual arm 250000CPH 5pcs camera high speed pick and place machine

According to the placement speed of the pick and place machine,The theoretical placement speed of the medium-speed pick and place machine is generally about 20000<pieces/h (chip components); The theoretical placement speed of the high-speed pick and place machine is generally 30,000 to 80,000 pieces/h per hour (this mainly refers to the placement of chip components below 0201 01005 as the standard).



Application

High speed Pick and place machine F9 apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m led flexible strip. such as led strip, led tube. can use Urban lighting, landscape lighting, commercial lighting, and some special lighting.




Production Introduction

F9



Features

  • producing with 4 types of materials with high capactiy. avaible for board with any proportion of led chip and resistor.

  • Dual arm four module, 17 nozzles for each mounting part, part a/b/c/d can be mounted separately and synchronously.

  • calibration automatically, high precision, available for RGB.

  • Exclusive patent technology :group to take and group to mount.

  • XYZ drive way High-end magnetic linear motor+servo motor.

  • electric feeder with doubler motor feeding way.







spare pick and place machine



Parameter

Model HT-F9
Dimension 2700*2300*1550
Total weight 1700kg
PCB length width Max:1200*330mm
MIN:100*100mm
PCB thickness 0.5-5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group to take and group to mount
System windows 7
software R&D indepentently
No.of camera 5PCS(Digital camera)
The Features of camera vision alignment, mark correction
Mounting/Repeat mounting precision ±0.02mm(repeat precision)
Mounting height ≤5mm
Mounting speed 200000-250000CPH
Components LED 3014/3020/3528/5050 and resistor,capacitor,bridge rectifiers,etc.
Components space 0.5mm



Sales Service

  • We can provide SMT whole production line solution.

  • Local engineer in India,Egypt, Turkey,which can provide you with the greatest convenience. such as quick free installation and Training.

  • One year for warranty.

  • Two regular visits custmer one year.

  • Free Software Upgrade: Offer free software upgrade whole lifetime.
