0.4-0.6MPa Gas Source SMT Mounting Machine 330mm Pcb Unloader Machine With Magazine

0.4-0.6MPa Gas Source SMT Mounting Machine 330mm Pcb Unloader Machine With Magazine
0.4-0.6MPa Gas Source SMT Mounting Machine 330mm Pcb Unloader Machine With Magazine

Large Image :  0.4-0.6MPa Gas Source SMT Mounting Machine 330mm Pcb Unloader Machine With Magazine

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC
Model Number: ET-UL330

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 4 weeks after payment
Payment Terms: T/T, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Applicaiton: Smt Production Line Dimension: L1900*W860*H1200±30mm
Structure: Pneumatic Clamp Structure Maximum Size Of PCB: L450*W330
Gas Source: 0.4-0.6MPa Name: UnLoader
High Light:

smt pick and place machine

,

smt pick and place equipment

ET-UL330 unloader machine



About us



Shenzhen ETON automatic equipment co.,ltd is an eight-year high-tech company, focusing on the research of smt industry, and has a strong technical research and development team, which is highly concerned by the government and industry melon.



Suitable for automatic smt prodution line



ET-UL330 is suitable for automatic smt production line, automatic machine board can reduce manual errors and can save manpower and improve work accuracy and efficiency.



Parameter

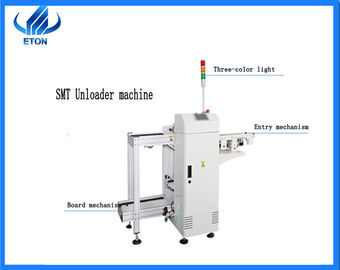

Item ET-UL330 unloader machine
Dimension L1900*W860*H1200±30mm
Frame Special aluminum profile guide rail and special thousand bird type plastic chain
Lift 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down
Structure Pneumatic clamp structure
0.8M long push plate Conveyor                1 set
Magazine Specifications L460*W400*565mm
Maximum size of PCB L450*W330
Direction Left to right / right to left
Lift platform pitch selection 10,20,30,40
Controller Mitsubishi PLC programmable controller
Closing function Automatic
Operation control panel Display control true color touch screen
power supply 220V 50HZ
Gas source 0.4-0.6MPa
No. of Full load storage board 50 pcs
Electric control box 1 set




Features



1.The most features of ET-DUL is double track with high effience.

2.The lift is 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down

3.Multifunctional Lift platform pitch selection, there are 10,20,30,40, 50, total 5 choices.

4.One set 0.6M long push plate Conveyor.



Supporting machine



ET-UL330 support max pcb 450*330, it can support the same pcb board size placement machine.

With loader machine, reflow soldering, pick and place machine, printing machine form a fully automatic smt production line.



Logistics and delivery



Our machine packaging will have a fixed packaging process:

  1. First apply a film to the machine.
  2. Secondly drain the air from the film and vacuum pack it.
  3. Then use the rope and bracket to dictate the machine on the board.
  4. Finally packed in wooden box.

With the four step, it is very stable and couldn’t move radon.
