Payment & Shipping Terms:
|Dimension:||2700*2450*1530 Mm||Total Weight:||1400 KG|
|PCB Length Width:||Max :330*1200 Mm||PCB Thickness:||0.5-5 Mm|
|Mounting Height:||<15 Mm||No.of Feeder Station:||68 PCS|
Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
Eton mission: professional, excellent technology, sharing the results.
Eton goal: to create a national brand, build international Chinese enterprise.
Eton purpose: to create value for customers, creating benefits for society.

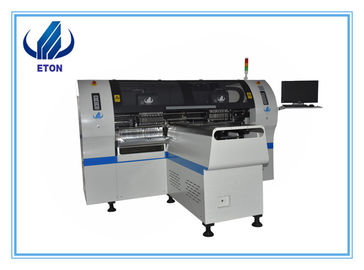

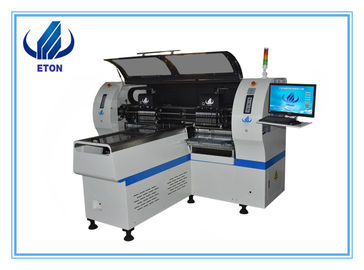

Double module professional high speed mounter
Apply to the 0.6M,0.9M,1.2M hard light board and 0.5M, 1M LED soft lamp strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor. Two mounting part, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Correction automatically, high precision, available for RGB
Global first technology patent: counterfeiting not allowed
IPC 9850 Capacity:150000-170000 CPH
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
led bulb assembly machine/smt production line
|Total Weight||1400 kg|
|PCB||PCB length width||Max:330*1200 mm Min:330*80 mm|
|PCB Clamping||Adjustable pressure pneumatic.|
|Mounting Mode||Group to pick and group to mount|
|Input Device||Keyboard, Mouse|
|Feeding system||No. of feeders||68 PCS|
|No. of nozzles||34 PCS|
|Feeder type||Electronic feeder|
|Vision System||No. of Camera||5 sets of imported camera|
|Vision for the flight identification + MARK correction|
|Mounting Precision||±0.02mm chip|
|Components||LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.|
|Power Consumption||5 kw|
|Conveyor Transmission||Max Length:1200 mm|
|Transmission Direction||Single(left→right or right→left)|
|Transmission Mode||Online drive|
|Air consumption||<100 L/min|
|Electrical control||Independent research and development by ETON|
|Motion control card module 2 sets||Independent research and development by ETON|
|X,Y Axies Driving||Servo motor control for X, Y, Z axies.|
We use standard export packing(wooden case with vacuum packing)and deliver the goods at ShenZhen port 15days after payment.
Quality First, Client-oriented,
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
Q: What are your advantages?
Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q : Is there any quality guarantee?
We stick to quality first, client-oriented, Continuous improvement!
Q: What is SMT Machine?
This is an LED lamp patch machine using surface mount technology.
Q: Whether the machine's after-sale service is guaranteed?
Each of our machines has a one-year warranty and will regularly visit customers for use.
If you are interested in our products, please feel free to contact me and I will be happy to answer any questions you have!
How to contact us ?
|Company||Shenzhen Eton Automation Equipment Co., Ltd|
|Address||The 44th Bld.,The 5th.Huaidecuigang Industrial area,Fuyong,Bao'an,Shenzhen,Chinana|
Contact Person: Glantine
