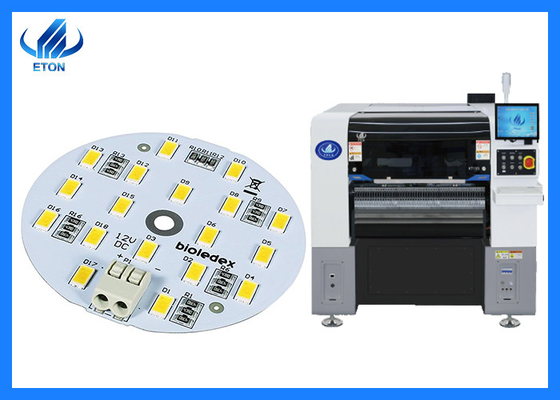

KT10S LED Mounting Machine 48000CPH for LED Chip Resistor Capacitor in High Demand

KT10S LED Mounting Machine 48000CPH for LED Chip Resistor Capacitor in High Demand
KT10S LED Mounting Machine 48000CPH for LED Chip Resistor Capacitor in High Demand

Large Image :  KT10S LED Mounting Machine 48000CPH for LED Chip Resistor Capacitor in High Demand

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: KT10S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days after receive the down-payment
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Name: Pick And Place Machine Model: KT10S
Warranty: 1 Year Applicable Components: 0201
Condition: 100% Original,Brand-new Mounting Speed: 48000 CPH
Feeders: 52
Highlight:

Resistor LED Mounting Machine

,

48000CPH LED Mounting Machine

,

Capacitor Mounting Machine

SMT Mounting Machine KT10S Precsion CHIP±0.03mm & Speed 48000CPH pick and place machine



Machine main parameter

Model KT10S
Dimension 1490*2020*1650mm
Total weight 2080kg
PCB size Max:500*470mm(Length can be customized) Min:50*50mm
PCB thickness 0.5-5mm
Mounting precision CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed 48000 CPH(Optimal speed)
Components LED, capacitor, resistors, shaped components,etc
Power consumption 220AC 50HZ 1.5KW
Feeder station 52 PCS(option 104 PCS), IC tray option
No. of head 10 PCS



Machine main features

Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model

Y axis double drive gantry, higher speed more stability

The placement head adopt independent vacuum detection, improve the placement performance

Off-line programming, save time of changeover cycle

Equipped coordinate import function, more intelligent



DOB Bulb making machine line

The equipment required for the semi-automatic production line includes:
Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line

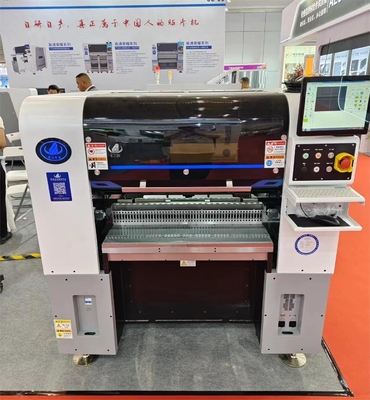

SMT Mounting Machine KT10S: Magnetic Linear Motor, Double Drive Gantry 0



Company Information

✬Our company is a leading manufacturer of automatic high speed pick and place machine focusing on High efficiency Low consumption,and is a famous high-tech automatic manufacturer in China.

✬We have our own industrial park,there are production center and R&D center and quality inspection centre to guarantee the machine quality.

✬Also,we have exported machine to different countries,such as India,Egypt,Korea,Turkey,Brazil etc.and enjoy good reputation on the market.

✬Our company will go to many exhibitions, such as the domestic Shanghai Munich exhibition, and foreign India Delhi exhibition, India Mumbai exhibition, Pakistan exhibition, Turkey exhibition, Thailand exhibition and so on.

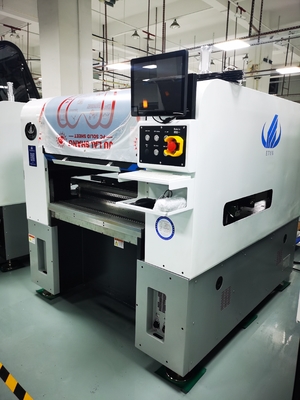

KT10S LED Mounting Machine 48000CPH for LED Chip Resistor Capacitor in High Demand 1



Attention

1.Before using the Pick and Place machine.you must understand the basic parameters of the placement machine,

2.Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine

3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions

4.It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner



Service

1.We have local India engineer, as long as you buy the machine, we will arrange engineer to install, debug, and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.

2.Chinese engineers provide online services.

3.If necessary, Chinese engineers will come to your factory for free install and training.

4.Besides, India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.

5. One-year warranty period, any parts that need to be replaced or repaired during the warranty period are free.

6.Once you buy our machine, you will enjoy free software upgrades for life.



FAQ

What are the main LED products o our machines for?

There are different machines in our company and different machines apply to different LED lights. The main products we can apply:bulb tube strip lamp panel. Down light,streetlight,ceiling light.wall washer light and so on.



Do our machines only for LED lights?

No,our machines apply to not only LED light but also other products.



What components do our machines apply to?

Our machines can patch LED 3014/30202/2835/5050/5630/5730 etc.. capacitors, resistors,IC.shaped components and so on.



Why do we adopt the smart electronic feeders?

Our machines adopt the smart electronic feeders which are more stable.universal and intelligent. The feeding speed of electronic feeder is faster than the traditional pneumatic feeder.It can avoid the cost and drop of materials effectively.
