Payment & Shipping Terms:
|Dimension:||3100*2400*1550 Mm||Total Weight:||1800 Kg|
|PCB Thickness:||0.5-5 Mm||Mounting Speed:||60000 CPH|
|No,or Camera:||4 Sets Of Imported Camera||Software:||R&D Independently|
smd pick and place machine,
smd led mounting machine
led bulb assembly machine/smt production line
|PCB||PCB length width||Max:1200*350 mm Min:50*5 0mm|
|PCB Clamping||Adjustable pressure pneumatic.|
|Input Device||Keyboard, Mouse|
|Feeding system||No. of feeders||2*17PCS|
|No. of nozzles||Dual module, totally 16|
|Feeder type||Electronic feeder|
|Vision System||No. of Camera||4 sets of imported camera|
|Vision for the flight identification + MARK correction|
|Mounting Precision||±0.02mm chip|
|Components||LED, capacitors, resistors, shaped components, etc(Max:17mm Min:0603)|
|Power Consumption||8 kw|
|Conveyor Transmission||Max Length:500mm|
|Transmission Direction||Single(left→right or right→left)|
|Transmission Mode||Online drive|
|Electrical control||Independent research and development by ETON|
|Motion control card module 2 sets||Independent research and development by ETON|
|X,Y Axies Driving||Servo motor|
Package: Standard export package(Wooden case with vacuum package)
Shipping: Shenzhen port within 15 days after payment

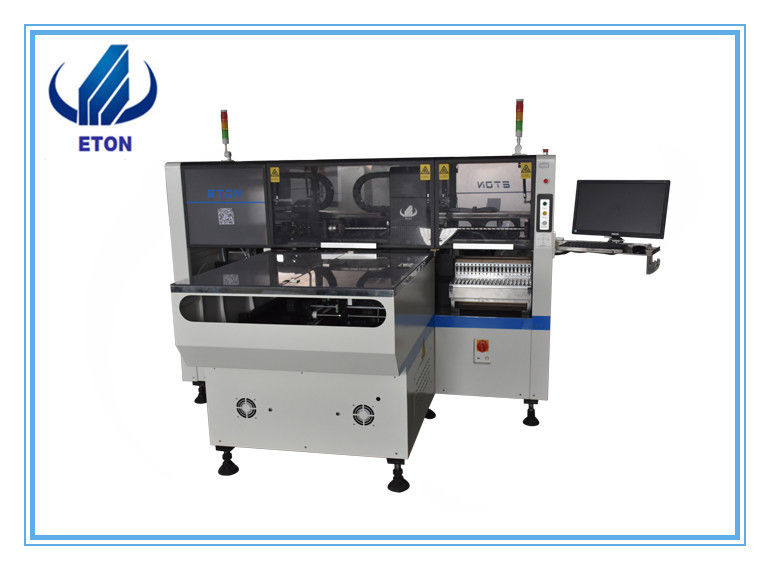

Our machine is a dual-system, dual-module multi-functional laminating machine, which can produce two different products at the same time. 16 suction nozzles of dual-module can be used to complete 60000 CPH efficiently.
Dual system, dual module multi-functional mounter.
Mounting components: LED,capacitors,resistors,IC,shaped components,etc.
Applicable to vibration feeding system for lens.
Exclusive patented technology:
Electronic feeder feeding system
Vision for the flight identification, Mark correction
Non-stop refueling capabilities
Auto-optimization feature after coordinated generated, etc.
Produce two different products at the same time.
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
Eton mission: professional, excellent technology, sharing the results.
Eton goal: to create a national brand, build international Chinese enterprise.
Eton purpose: to create value for customers, creating benefits for society.
Q: What is SMT Machine?
This is an LED lamp patch machine using surface mount technology.
Q: Whether the machine's after-sale service is guaranteed?
Each of our machines has a one-year warranty and will regularly visit customers for use.
Q: What are your advantages?
Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q : Is there any quality guarantee?
We stick to quality first, client-oriented, Continuous improvement!
