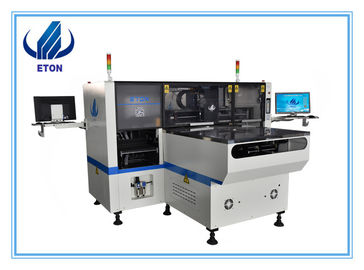

LED Monitor Smd Led Pick And Place Machine E8T-1200 60000 CPH Mounting Speed Capacity

LED Monitor Smd Led Pick And Place Machine E8T-1200 60000 CPH Mounting Speed Capacity
LED Monitor Smd Led Pick And Place Machine E8T-1200 60000 CPH Mounting Speed Capacity

Large Image :  LED Monitor Smd Led Pick And Place Machine E8T-1200 60000 CPH Mounting Speed Capacity

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CE CCC ISO
Model Number: HT-E8T-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $76,000-77,000 / Units
Packaging Details: Standard export package(Wooden case with vacuum package)
Delivery Time: 15 DAYS
Payment Terms: T/T
Supply Ability: 50
Detailed Product Description
Dimension: 3100*2400*1550 Mm Total Weight: 1800 Kg
PCB Thickness: 0.5-5 Mm Mounting Speed: 60000 CPH
Conveyor Transmission: Max Length:1200 Mm Transmission Mode: Onlne Drive
High Light:

smd pick and place machine


smd led mounting machine


Technical Parameter

led bulb assembly machine/smt production line

Dimension Length 3100MM
Width 2400MM
Height 1550MM
Total Weight 1800kg
PCB PCB length width Max:1200*350 mm Min:50*5 0mm
PCB thickness 0.5~5mm
PCB Clamping Adjustable pressure pneumatic.
O.S. system Windows7
software R&D independently
Display LED Monitor
Input Device Keyboard, Mouse
Feeding system No. of feeders 2*17PCS
No. of nozzles Dual module, totally 16
Feeder type Electronic feeder
Vision System No. of Camera 4 sets of imported camera
  Vision for the flight identification + MARK correction
Mounting Precision ±0.02mm chip
Mounting Height <15mm
Mounting Speed 60000CPH(optimum)
Components LED, capacitors, resistors, shaped components, etc(Max:17mm Min:0603)
Components Space 0.2mm
Power 220AC 50HZ
Power Consumption 8 kw
Operating Environment 23±3
Conveyor Transmission Max Length:500mm
Transmission Speed >500mm/sec
Transmission Direction Single(left→right or right→left)
Transmission Mode Online drive
Air pressure >5.0kg/cm2
Electrical control Independent research and development by ETON
Motion control card module 2 sets Independent research and development by ETON
X,Y Axies Driving Servo motor


Company Introduction

Shenzhen Eton Automation Equipment Co.,Ltd mainly takes professional, efficient and low consumption SMT full- automatic high-speed laminating machine as its responsibility, national high-speed technology enterprise integrating product development,production,sales and service



Quality Principle:

Quality First, Client-oriented,

Continuous Improvement!



Double module multi-functional high speed mounter.

Dual system, dual module multi-functional mounter.

Mounting components: LED,capacitors,resistors,IC,shaped components,etc.

Applicable to vibration feeding system for lens.

Exclusive patented technology:

Electronic feeder feeding system

Vision for the flight identification, Mark correction


Non-stop refueling capabilities

Auto-optimization feature after coordinated generated, etc.

Produce two different products at the same time.



Packing & Shipping



LED Monitor Smd Led Pick And Place Machine E8T-1200 60000 CPH Mounting Speed Capacity 0

We use standard export packing(wooden case with vacuum packing)and deliver the goods at ShenZhen port 15days after payment.

After Sales Service

Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment.


Our Client

LED Monitor Smd Led Pick And Place Machine E8T-1200 60000 CPH Mounting Speed Capacity 1

Many high speed mounter—one reflow oven.




Q: Why choose us ?

We adopt professional, high efficiency, low consumption and specialized in research and development, production, sales and service of SMT high-speed SMT machine automation.

Q: What is your delivery date?

The delivery date is about 15 days after receipt of payment.

Q: What's the credibility of your brand?

Our company stick to sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

Q:What are the main LED products do our machines for?

There are different machines in our company, and different machines apply to different LED lights and components. The main products we can apply: bulb, tube, strip, lamp, panel. Down light, streetlight, ceiling light. wall washer light, power, driver, lens and so on.
