LED Monitor SMT Mounting Machine 4kw 40000 CPH Mounting Speed 220 AC 50 HZ

small.img.alt small.img.alt small.img.alt

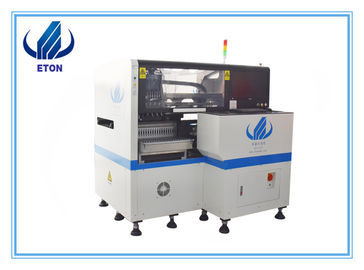

Large Image :  LED Monitor SMT Mounting Machine 4kw 40000 CPH Mounting Speed 220 AC 50 HZ

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CE CCC ISO
Model Number: HT-E5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $85000 - 86000 / Unit
Packaging Details: Standard export package(Wooden case with vacuum package)
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 50
Detailed Product Description
Dimension: 1458*1226*1437 MM Total Weight: 1200 KG
PCB Length Width: Max 500*350 MM Mounting Speed: 40000 CPH
Power Supply: 220 AC 50 HZ
High Light:

smt mounter machine


smt pick and place equipment

Our machine is a multi-functional module high-speed laminator, which can connect multiple machines in series to efficiently complete the operation of five machines at the same time.


Technical Parameter

led bulb assembly machine/smt production line

PCB PCB length width Max:500*350 mm Min:100*5 0mm
PCB thickness 0.5~3mm
PCB Clamping Adjustable pressure pneumatic.
O.S. system Windows7
software R&D independently
Display LED Monitor
Input Device Keyboard, Mouse
Feeding system No. of feeders 20PCS
No. of nozzles Single module, totally 8
Feeder type Electronic feeder
Vision System No. of Camera 2 sets of imported camera
  Vision for the flight identification + MARK correction
Mounting Precision ±0.02mm chip
Mounting Height <15mm
Mounting Speed 40000CPH(optimum)
Components LED, capacitors, resistors, shaped components, etc(Max:17mm Min:0402)
Components Space 0.2mm
Power 220AC 50HZ
Power Consumption 4kw
Operating Environment 23℃±3
Conveyor Transmission Max Length:500mm
Transmission Speed >500mm/sec
Transmission Direction Single(left→right or right→left)
Transmission Mode Online drive
Air pressure >5.0kg/cm2
Electrical control Independent research and development by ETON
Motion control card module 2 sets Independent research and development by ETON
X,Y Axies Driving Servo motor


Multifunctional high speed module pick and place machine, can connect in serried and placing the same PCB on line.

Mounting parts: LED,capacitors,resistors,ICshaped components,etc.

IPC9850 Capacity: 40000 CPH

Exclusive patented technology:

Electronic feeder feeding system

Vision for the flight identification, Mark correction

Non-stop refueling capabilities

Auto-optimization feature after coordinated generated, etc.

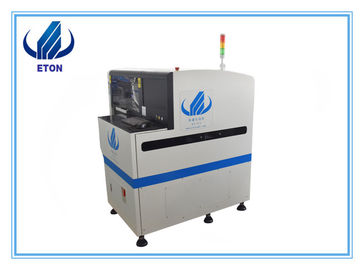

LED Monitor SMT Mounting Machine 4kw 40000 CPH Mounting Speed 220 AC 50 HZ 0

Packing & Shipping

Package about Standard export package(Wooden case with vacuum package)

Shipping in Shenzhen port within 15 days after payment


About the quality:

Maintenance Period about 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free.Visit customer regularly and gather information.

Provide latest information about technology and equipment.



Q:Quality Principle

We stick to quality first, client-oriented, Continuous improvement!

Q: What is your delivery date?

The delivery date is about 15 days after receipt of payment.

Q: What's the credibility of your brand?

Our company stick to sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

Q: Why choose us ?

We adopt professional, high efficiency, low consumption and specialized in research and development, production, sales and service of SMT high-speed SMT machine automation.
