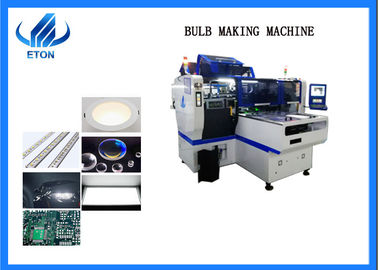

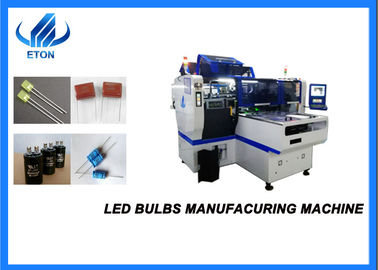

Premium Visual Camera SMT Mounting Machine LED Making Machine 80000CPH

Premium Visual Camera SMT Mounting Machine LED Making Machine 80000CPH
Premium Visual Camera SMT Mounting Machine LED Making Machine 80000CPH Premium Visual Camera SMT Mounting Machine LED Making Machine 80000CPH

Large Image :  Premium Visual Camera SMT Mounting Machine LED Making Machine 80000CPH

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Model Number: HT-E8D-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: FOB USD 81000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Place Of Origin: China Name: HT-E8D-1200
Warranty: 1 Year Dimension: 3150*2250*1650mm
Total Weight: 2000kg Power: 380AC 50HZ
Power Consumption: 8KW Mounting Speed: 80000CPH
Mounting Height: <36mm Visual Camera: 2 Sets Of Imported Camera
Drive Way: High-end Magnetic Linear Motor +servo Motor
High Light:

smt pick and place machine

,

smt pick and place equipment

Double module magnetic linear motor multifunctional pick and place machine



The Difference between Double Module LED lamp  Machine and Single Module LED lamp Machine is that the double teeth whitening  machine have dual system and to produce two different products at same time.



This is a multifunctional pick and place machine, it is can mounting LED,capacitors,resistors,IC,shaped components,etc.



This led bulb laser printing machine can meet the needs of producing two kinds of products at the same time. The mounting speed reaches 80,000 CPH, which greatly improves the production efficiency.



pick and place machine  Function & Application
features Exclusive Patented Technology
Dual system,dual module multifunctional mounter.To produce two different products at the same time. Electronic feeder feeding system
Mounting components:LED,capacitors,resistors,IC,shaped components,etc. Vision alignment flight identification,mark correction
Application: power driver.electric board.lens.linear bulb.household appliance etc. Non-stop material re-loading function
Component:min.size 0402 max.height 36 mm. auto-optimization after coordinates generated ,etc





Technical parameter
PCB
PCB length width Max:1200*300mm min:100*100mm
PCB thickness 0.5~5mm
PCB clamping Adjustable pressure pneumatic
O.S.
system Windows7
software R&D independently
display Touch screen monitor
input Keyboard mouse
Feeding system
No. of feeders station Dual mode ,totally 40
No.of nozzles Dual mode,totally 16
Feeding way Electric feeder with double motor





Premium Visual Camera SMT Mounting Machine LED Making Machine 80000CPH 0



Premium Visual Camera SMT Mounting Machine LED Making Machine 80000CPH 1

Honour show

ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.

Including 9 invention patents,112practical patents,12 software copyrights.



Premium Visual Camera SMT Mounting Machine LED Making Machine 80000CPH 2



Project cases

Premium Visual Camera SMT Mounting Machine LED Making Machine 80000CPH 3

Patented Technology
Electronic feeder feeding system

Vision alignment flight identification,mark correction

Non-stop material re-loading function

Auto-optimization after coordinates generated ,etc.



Our Partners

ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.



Honour show

ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.and rated as “shenzhen high-tech enterprise” “china high-tech enterprise” “shenzhen top brand” “2015 LED technology innovation award” “the 4th China LED first innovation award”.





Packaging & Shipping

Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.

Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.



Our Services



Attention

1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;

2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.

3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;

4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.



After-sale Service

we will send our engineer to your factory to install machine and training freely.

We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.

Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.



FAQ



1, What’s the terms of payment? What about the trade term?

T/T is OK. You can choose FOB Shenzhen.



2, What is the delivery date?

We will deliver the goods after 30 days' deposit.



3, What mode of transport does the goods adopt?

Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
